鼓楼7号院:眺望钟鼓楼的建筑事务所

鼓楼7号院:眺望钟鼓楼的建筑事务所
高天霞 | 2017.02.09 15:00

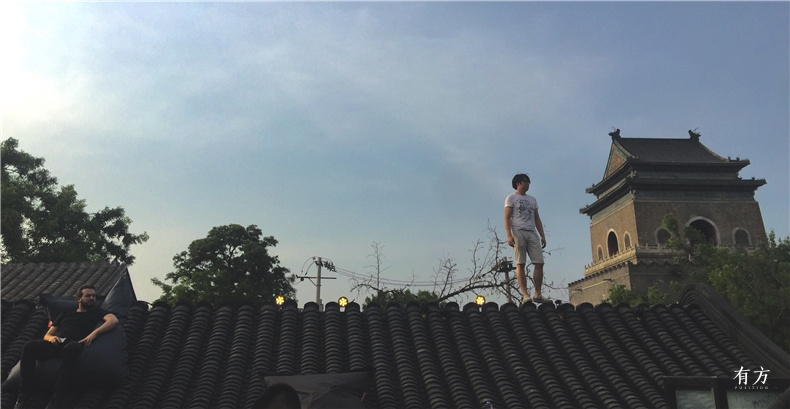

钟鼓楼建筑事务所13
北眺钟楼 ©RSAA建筑事务所

我们不认为我们应该造一个你以前生活过的老院子让你全然地重温过去;

我们只是创造一个窗口,从这里窥视你依然能找到儿时上房揭瓦的兴奋,打柿子的愉悦,看鸽子时的畅快,

但同时真正激动人心的,是这些传统的片段却组成了一个属于未来你不曾体验过的空间。

——庄子玉

''We don''t expect to rebuild an exact the same old space in your memory. We build a speculum that you can feel the experience of your childhood in Beijing such as "roof hiking", "persimmon picking" and "pigeons chasing". However, more exciting thing here is that you can feel how futuristic it could be after these traditional elements reorganized.'' Ziyu Zhuang said.



在北京古城中轴线上,建筑事务所RSAA/庄子玉工作室刚刚完成了他们的新办公室的建筑及室内改造。该事务所将德国科隆和中国北京作为核心工作地。

The Chinese-German office RSAA/ Buro Ziyu Zhuang just renovated their office in Beijing central axis.

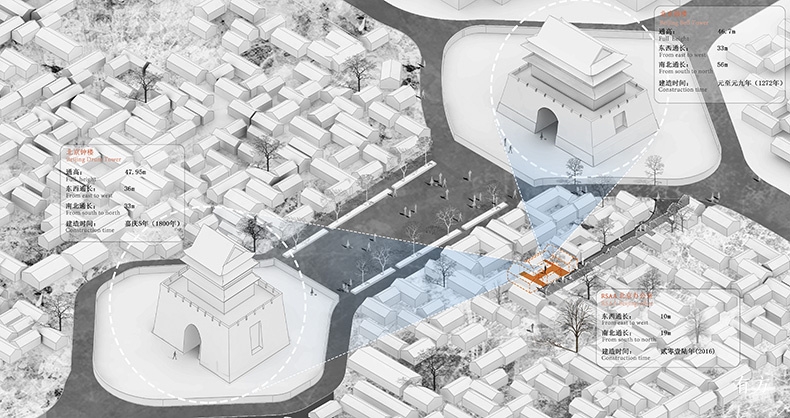

区 位

Location

钟鼓楼建筑事务所10

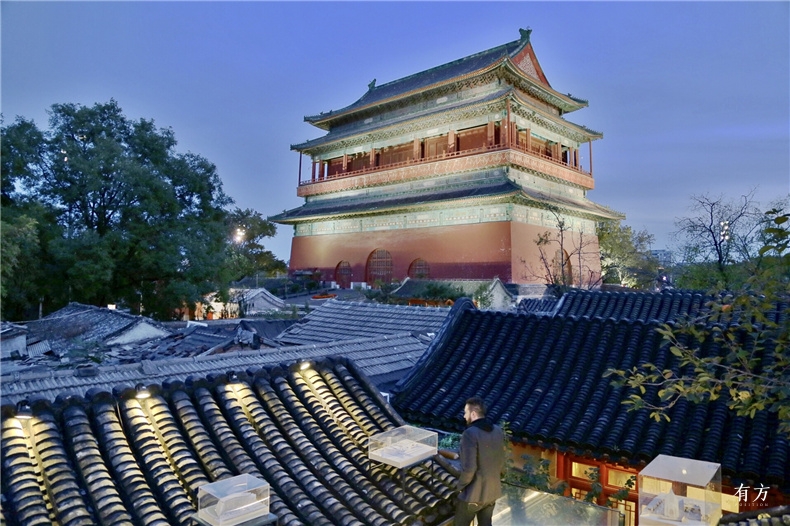

南望鼓楼,南房为模型室 the view of the Drum Tower with the southe room/model shop

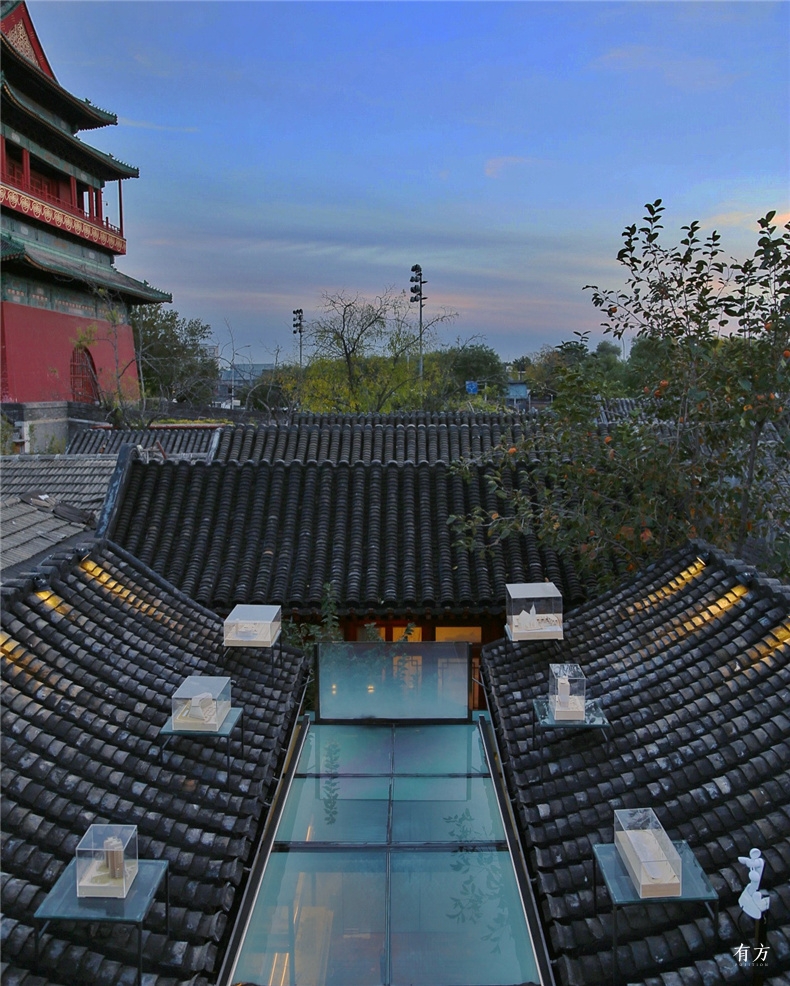

钟鼓楼建筑事务所4
在工字型院落中置入一个“无时效的”玻璃体块 inset a  ‘timeless box’ as a ‘functional generator’

改造项目邻近北京传承600年之久的至高点——钟鼓楼,设计团队将老旧的四合院改造成了满足建筑事务所办公需求的空间。期望创造一种无时效的空间语汇,以及对周遭空间文脉特征的引入和吸纳。

The project, which is right next to the tallest ancient landmarks of Beijing for more than 600 years -Drum Tower and Bell Tower, is adopted from a traditional Beijing - style courtyard - Siheyuan in Dongjiaogan Hutong. The design target is to build a timeless workshop but embracing the surround cultural context into the yard.



钟鼓楼建筑事务所28





设 计

Design

钟鼓楼建筑事务所7

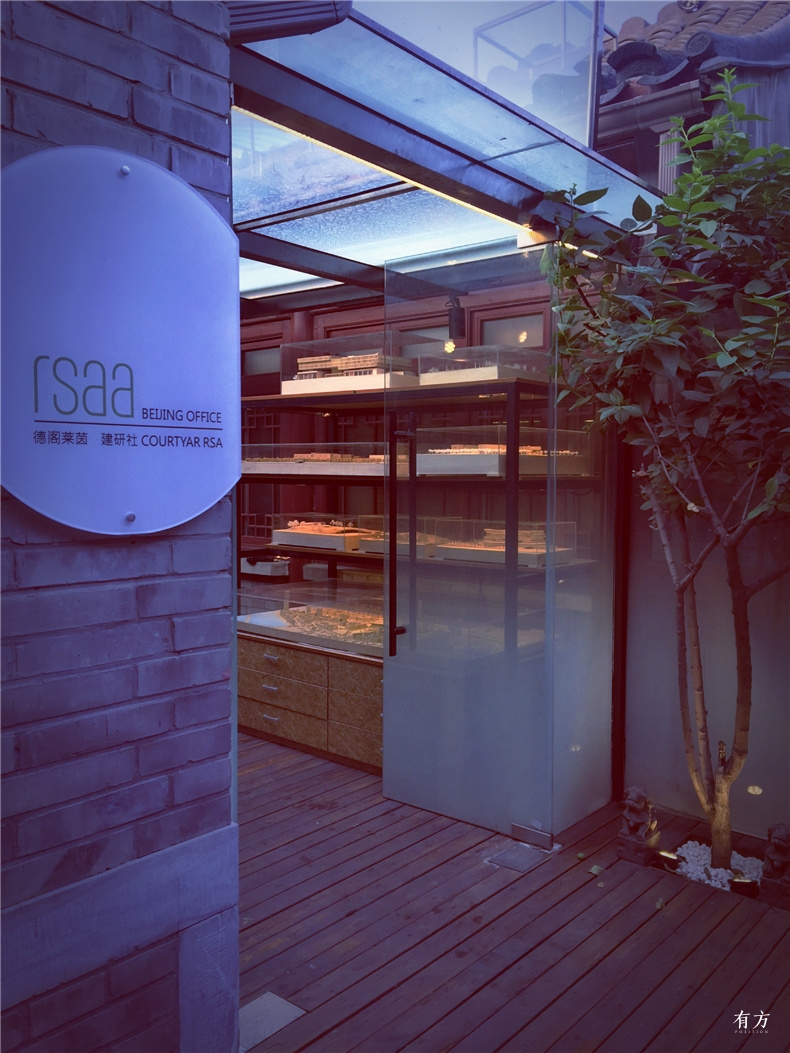

钟鼓楼建筑事务所2
前院夜景 front yard during the night

此次改造分为三个阶段:

1.以传统的工艺恢复和展示一些建筑的原有部分;

2.在此基础之上,植入一个“无时效的箱体”作为新生功能和空间的“发生器”;

3.在新的空间格局之下,重新处理内外一系列空间界面;

4.在新的界面的串联之下产生新的立体的空间序列。

Therefore the renovation was organized into 3 steps:

1. Refurbished the old part under traditional method;

2. Inset a ''timeless box'' as a ''functional generator'';

3. Reform the interface of the new yard space;

4. Organize the new space sequences under the link of the new interfaces.



为达成上述目的,先清除部分原有不必要的装饰面,并将原有的古建结构暴露出来。完成之后,庄子玉和其团队在原有的工字型院落中置入了一个自承重结构体系的玻璃体块,将北房、东房、西房作为连续空间联系起来,以获得更高的办公效率。

To achieve the goals, after cleaning up some old unnecessary interfaces and exposed original traditional structures, Ziyu Zhuang and the team built a T shape freestanding glassy volume to combine the original northe room, weste room and easte room in order to form a more efficient working environment.

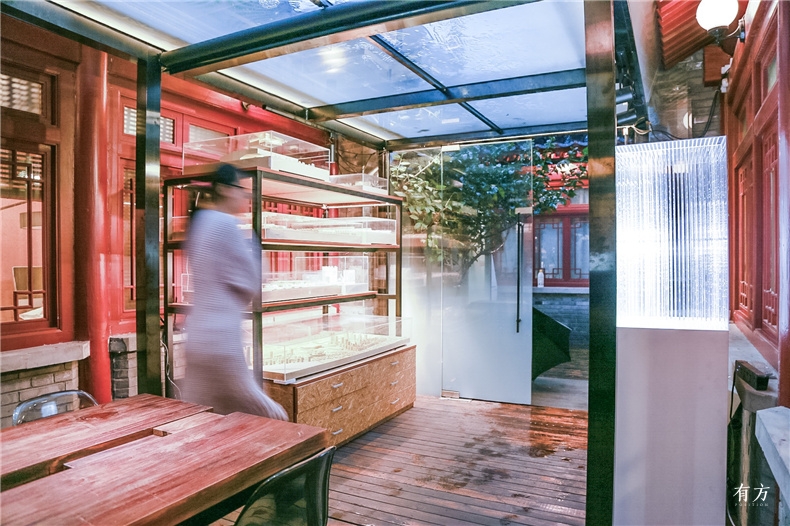

钟鼓楼建筑事务所20

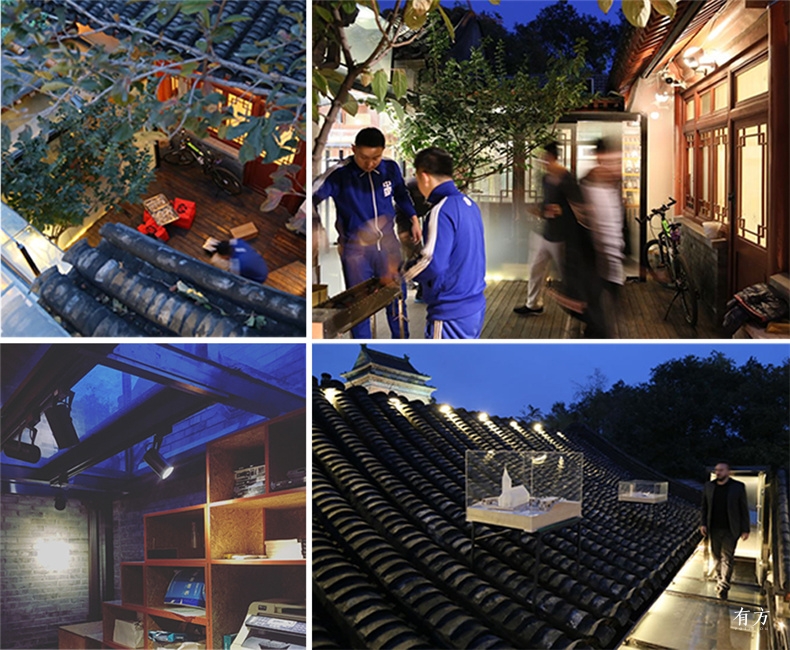

钟鼓楼建筑事务所11



新的T型体块在东北脚室内增设了一个综合书柜,同时充当通向屋顶平台的楼梯。通过此平面的抬升,人的视野得到了极大拓展。登上平台即可将钟楼鼓楼的视线尽收眼底。

One bookcase on the northeaste wing of the T shape volume also plays a role as a staircase to the rooftop level, where the views of the two ancient towers are introduced into the yard.



钟鼓楼建筑事务所30

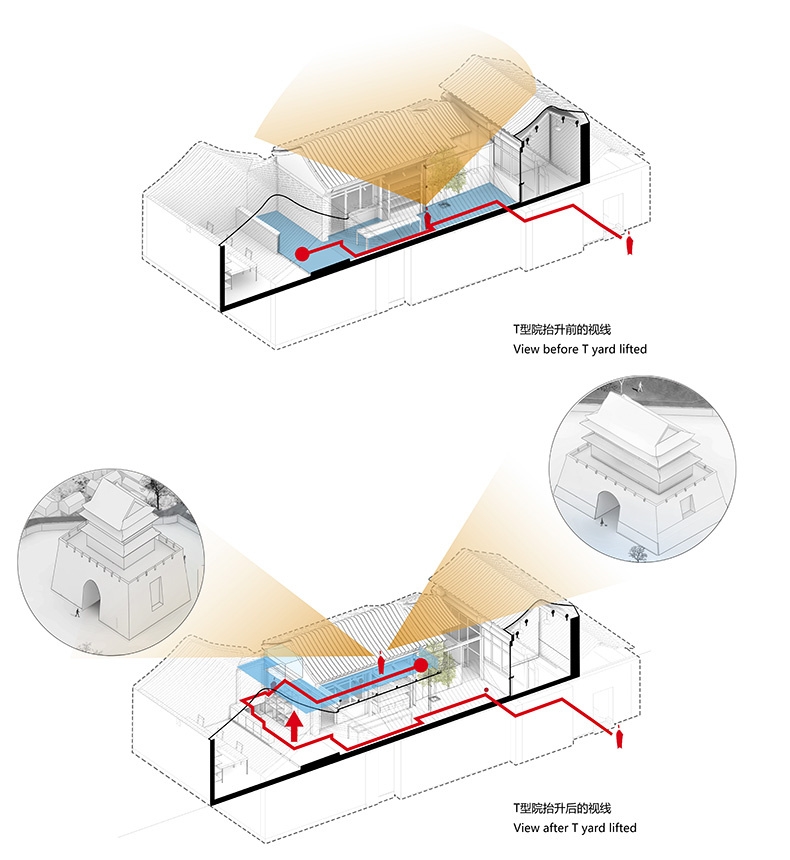

活动界面的抬升,屋面承重结构的加固,原有的坡屋面变成了“唾手可得”的新的活动平台,成为使用者新的纳凉午休及嬉戏的空间。

Also in this case, after strengthen the structure for loading, the pitched roof become the 3rd level of the activity space for office chatting, playing and even napping for the staffs.

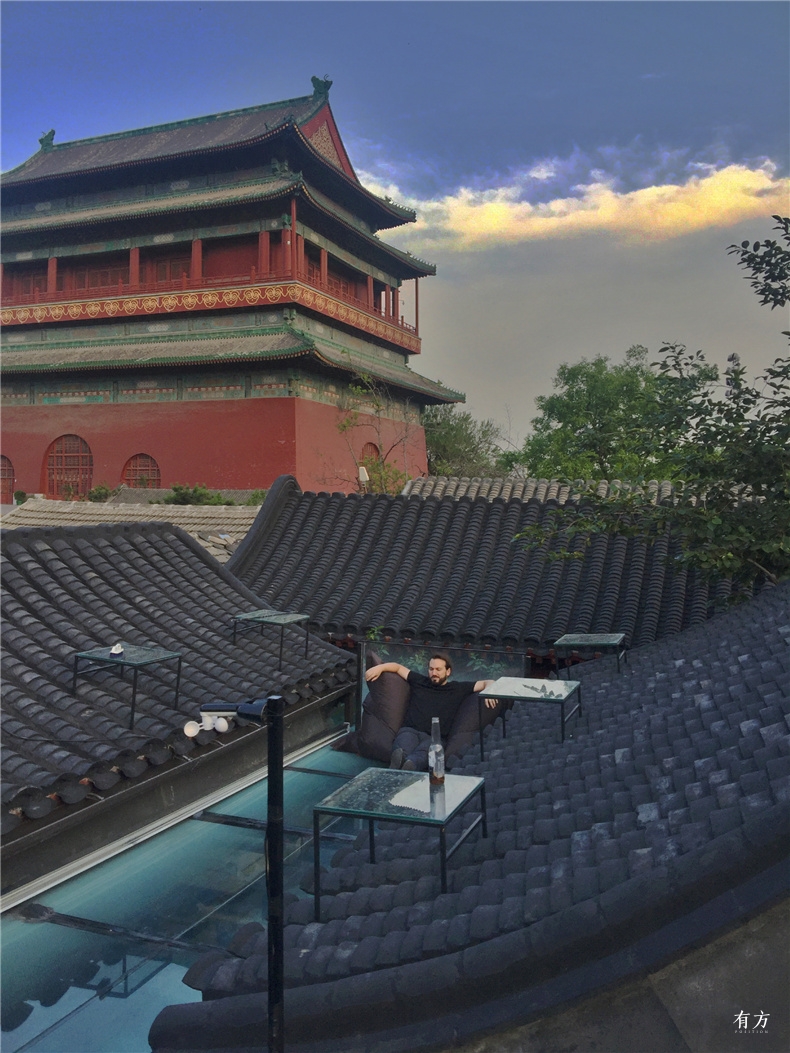

钟鼓楼建筑事务所1

钟鼓楼建筑事务所12



北屋的挑高空间也被充分利用。入驻时的石膏吊顶被拆除后,原有木构形式被再次打开,上层空间被若干个箱体及反射面占据,作为模型展示之用,与外露的建筑结构相得益彰,同时潜在传递设计团队的设计理念——以建构文化为先导。

High space in the northe room become the model display space together with the re-exposed tradition structural components such as the rafters, crescent beams and purlins, which create a very strong archi-tectonic ''image'' with the wooden models. And that is also linked tightly with RSAA''s design philosophy.

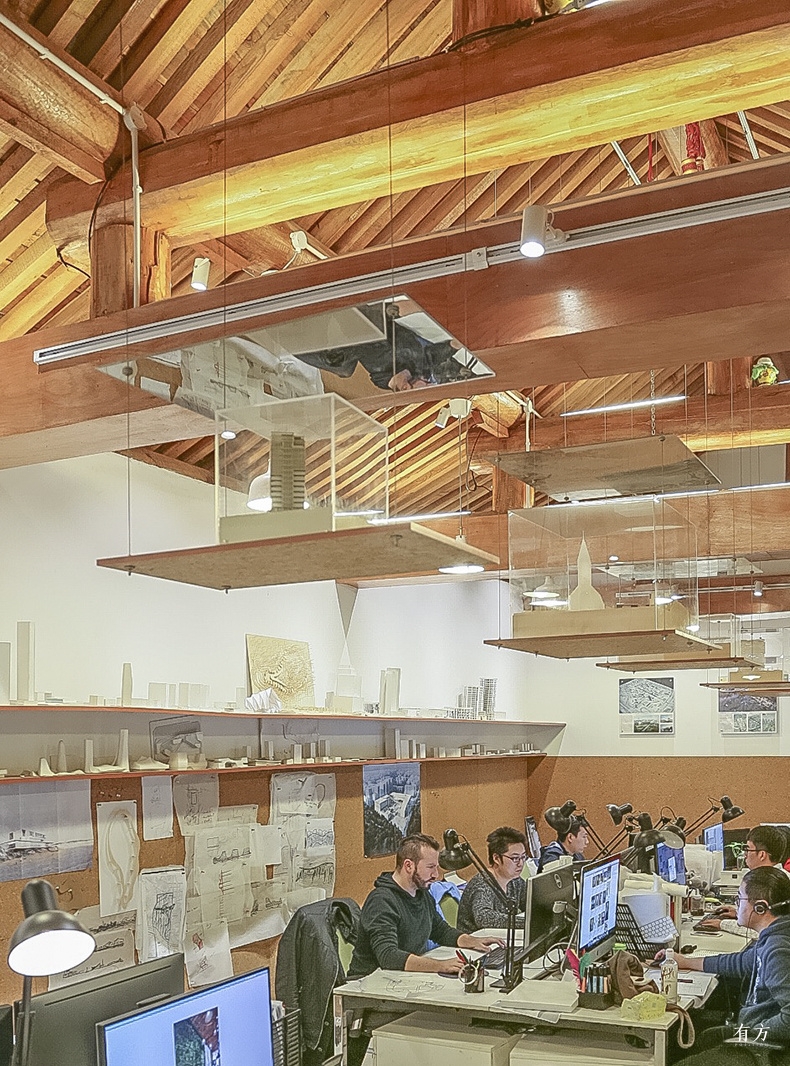

钟鼓楼建筑事务所31
北屋的挑高空间再利用 high space in the northe room become the model display space



钟鼓楼建筑事务所17

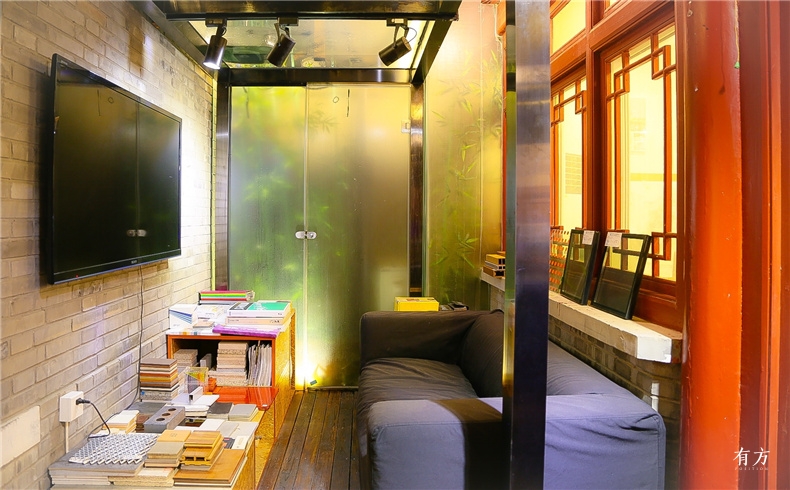

室外机被集中在工字院西北角的半透明光井之中 one small yard on the northweste wing of the T shape volume was filled with AC outdoor units from different rooms and artificial green plants as a ''camouflaged green light well'' behind an opaque glass wall

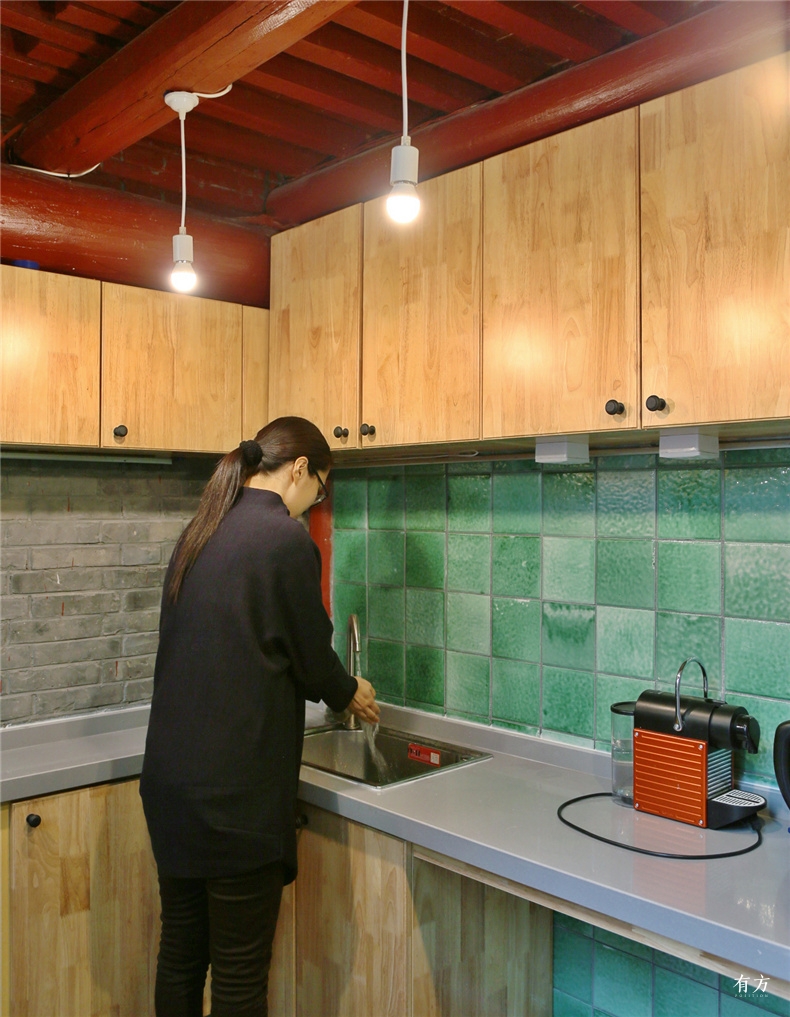

钟鼓楼建筑事务所18
厨房改造:隔壁院落的外墙(灰色)+ 原有结构部分(红色)+ 表面瓷砖(绿色) 整个厨房改造成本不到5000元 the kitchen space share the wall of the neighbor, meanwhile reused the original structural components (red) and original tiles (green). The overall construction cost of the kitchen is even less than 5000Yuan(700USD)
钟鼓楼建筑事务所32

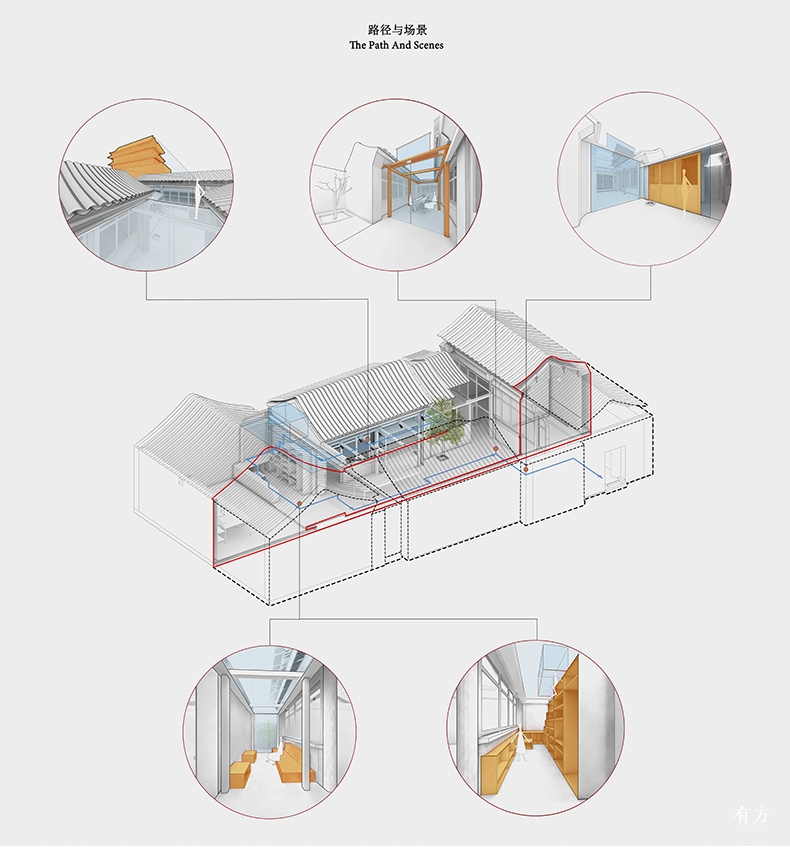

建筑师为“一进院”创造了若干新的空间节点,重组了空间序列 some small interesting spaces,  appear along a new path

整个项目包括土建成本、水暖电及家具在内,整体改造的造价被控制在 20 万人民币以内。设计团队相信这个改造项目在相对低成本的条件下融合了传统和当代的精神。

The total construction cost was very efficiently controlled within 200,000RMB(30,000 USD) including the MEP and fuiture cost. RSAA believe this renovation could be a very good example as a link between traditional Chinese lifestyle and mode space visions under low cost.



钟鼓楼建筑事务所29

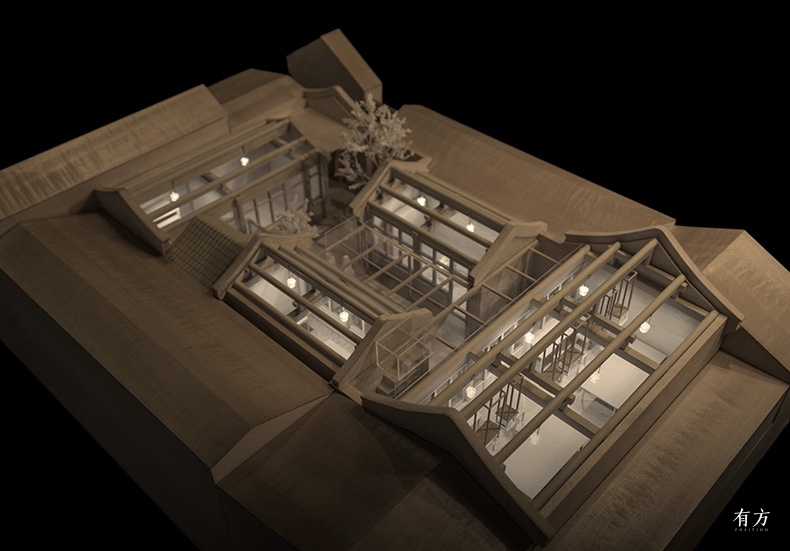

项目模型 wood model

鼓楼 7 号院
设计团队:RSAA建筑事务所
项目地点:北京市西城区鼓楼西大街东轿杆胡同 7 号
项目时间:2015年
项目:办公室
预算:20 万元


项目主创:庄子玉,李娜
团队成员:刘毅, Fabian Wieser,张世峰,陈冬冬,柴文璞(实习生),李晓旭(实习生),王冕(实习生),黄俊雅(实习生)

Courtyard No.7 Of The Drum Tower Beijing
Location : No.7, Dongjiaogan Hutong, Xicheng District, Beijing, China
Year : 2015
Program : Office
Budget : 200,000RMB


Principal in charge: Ziyu Zhuang, Na Li
Credits: Yi Liu, Fabian Wieser, Shifeng Zhang, Dongdong Chen, Wenpu Chai(Inte),
Xiaoxu Liu(Inte), Mian Wang(Inte), Junya Huang(Inte)
