错动裂变：巨人网络总部办公楼 / 墨菲西斯

原源 | 2018.02.27 09:00

墨菲西斯

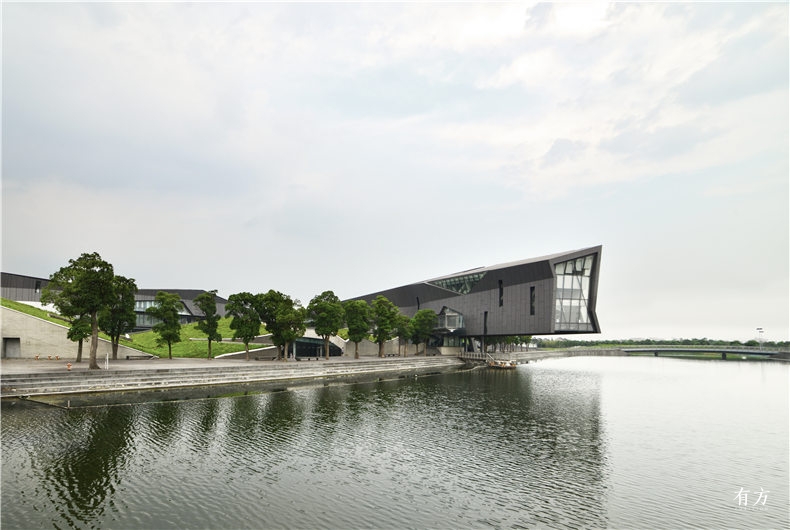

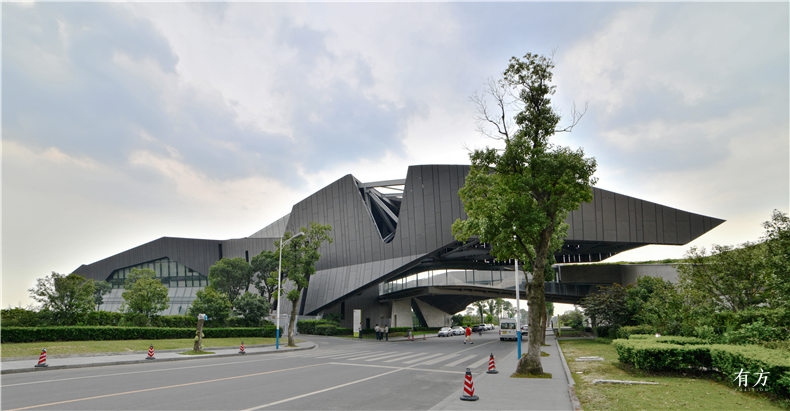

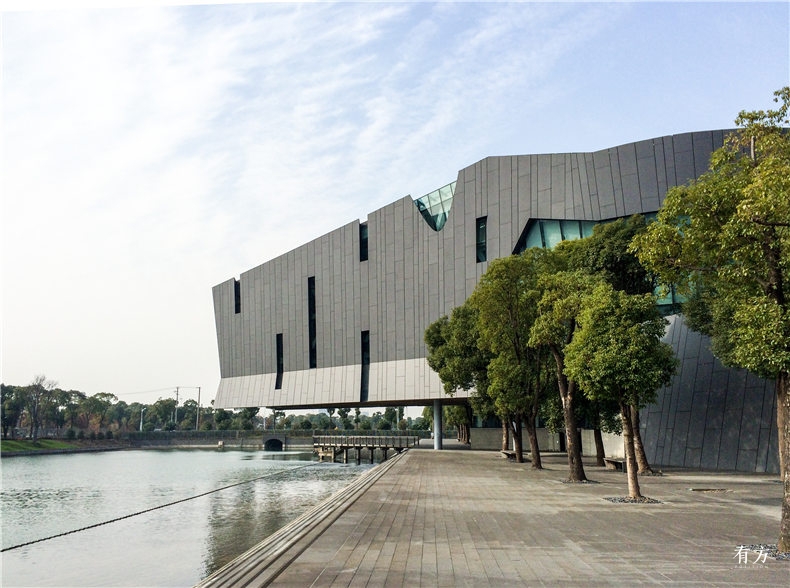

巨人网络总部办公楼是一个综合性项目，在一个可灵活分割的建筑群体中包括各种不同功能区域。项目坐落于现有渠道及人工湖之间，起伏的办公楼与地面层交相呼应，使得建筑和景观紧密连接。东侧的办公区包括三个区域：开放、无等级差异的开敞办公室，隔间办公室，以及悬挑在人工湖上的总裁办公室。其余的功能和抬高的景观融为一体，包括一个图书馆、一个多功能演艺厅、一个展示空间、一个咖啡厅。在西侧，其他的在起伏屋顶景观下的功能包括一个多功能的体育场及附属设施和员工健身房。西侧有招待所，其卧室有可以俯瞰湖面的玻璃地面。

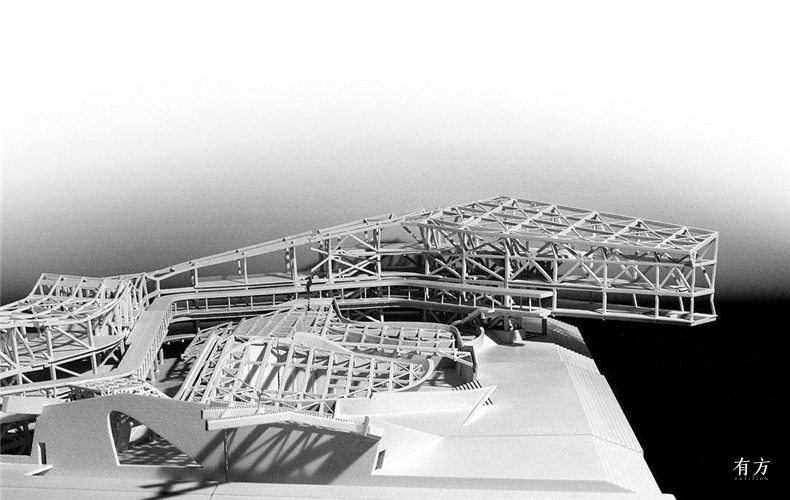

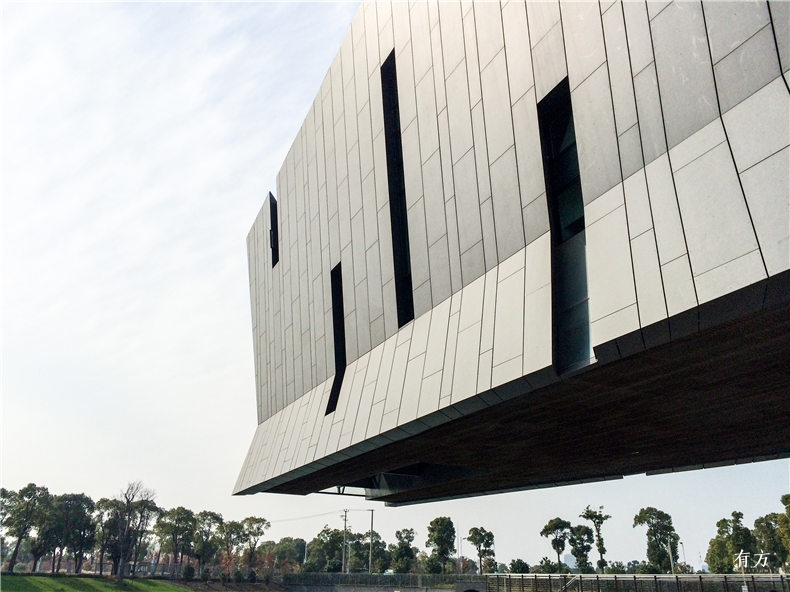

The Giant Campus project is a compact village that accommodates diverse functions in a flexible framework of forms that move in and out of a folded landscape plane. Situated amid existing canals and a new man made lake, the undulating office building interacts with an augmented ground plane, joining architecture to landscape and environment to site. The East Campus office building contains three zones: open, non-hierarchical office space; private offices, and executive suites, which cantilever dramatically over the lake. Additional program is integrated into the lifted landscape, including a library, an auditorium, an exhibition space, and a café on the east campus. On the West Campus, additional program space-submerged below an expansive, undulating green roof- includes a pool, a multi-purpose sports court, and additional relaxation and fitness spaces for employees. The landform culminates to the west at a company guest hotel where glass-floored private bedroom suites project over a wildlife pond.

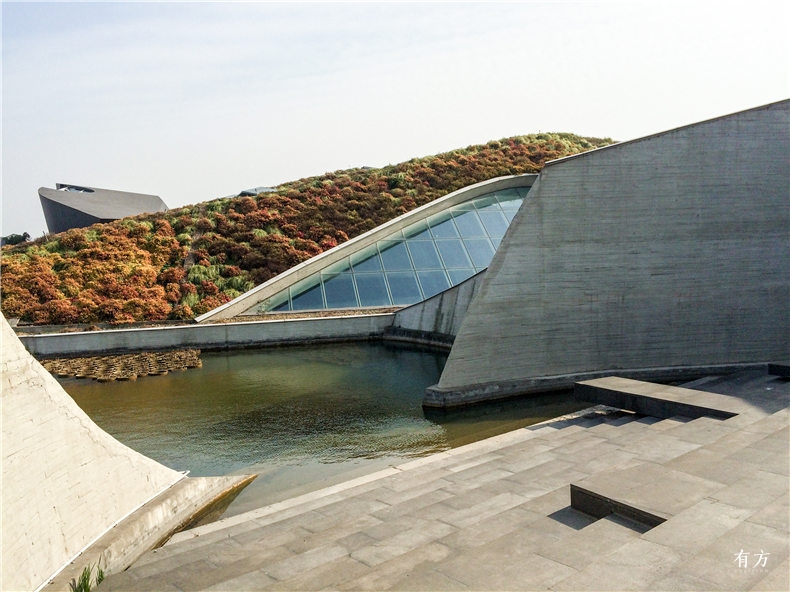

景观2

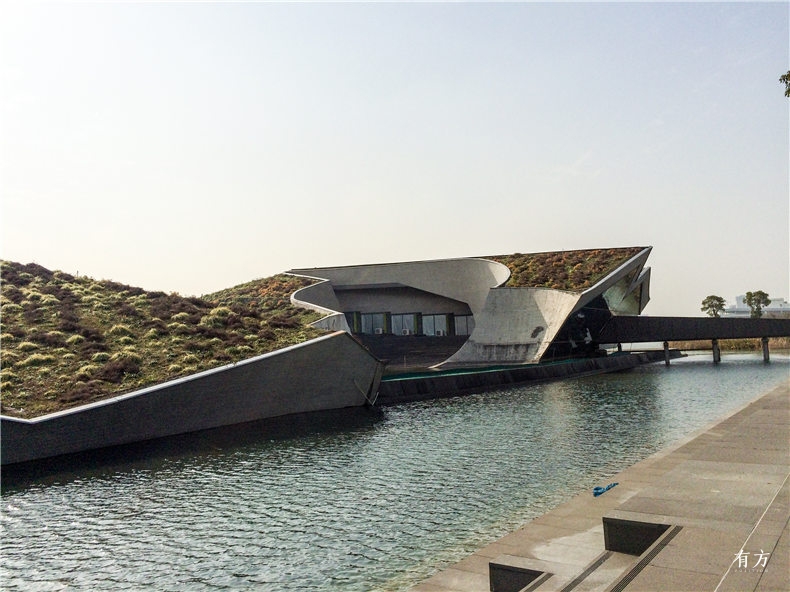

景观3

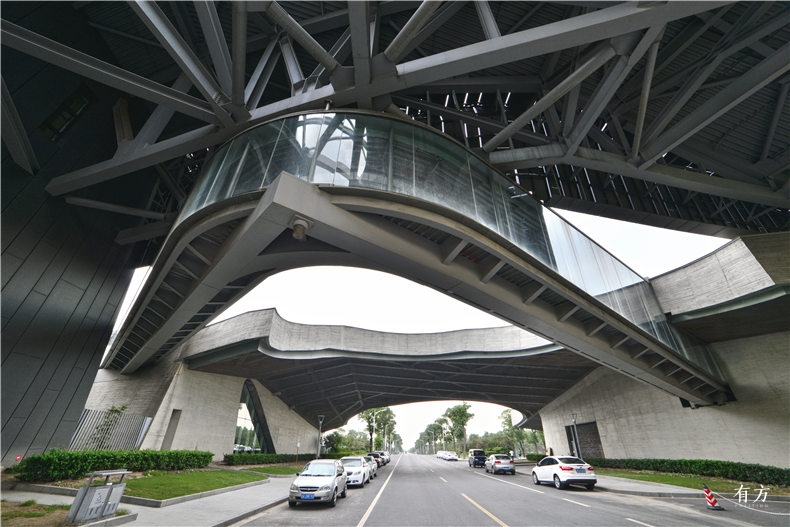

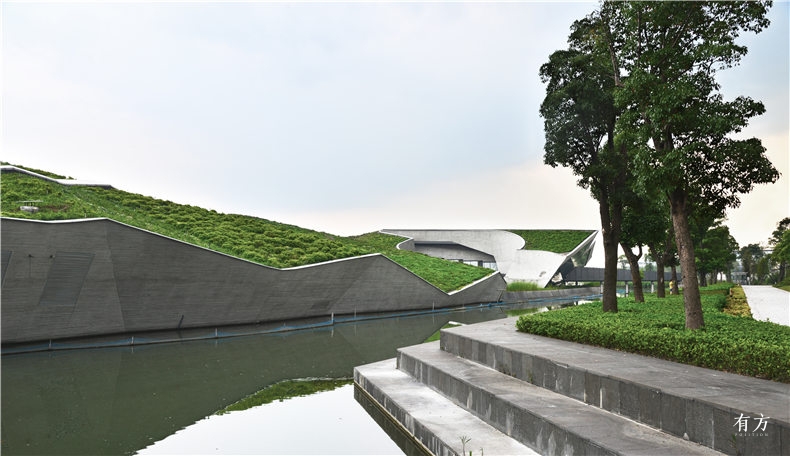

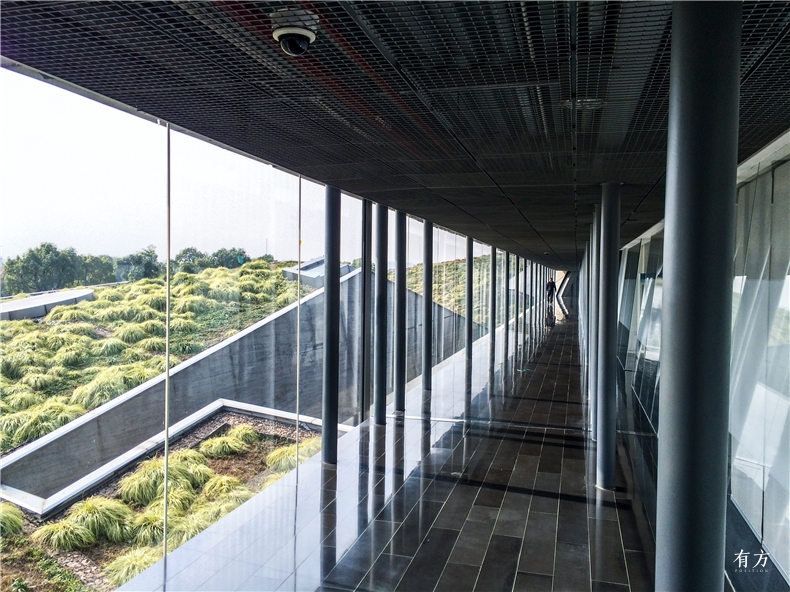

设计将数个广场从地景中抬高、挖凿出来，为员工了提供户外休息和娱乐空间。在办公中心南侧边界，一个人行广场提供了通往人工湖边的通路。主要的连廊在办公楼三层外侧连接主要办公区域而成封闭的空间，并跨越主要道路，连接东西园区。

Several plazas, carved from the landscape, provide outdoor break and recreational spaces for employees. At the south edge of the campus, a pedestrian plaza steps down to the water’s edge in a continuous outdoor walkway that provides pedestrian access to the lake. The main circulation spine, an enclosed walkway located outboard of the office building, bridges over the street connecting the east and west campuses.

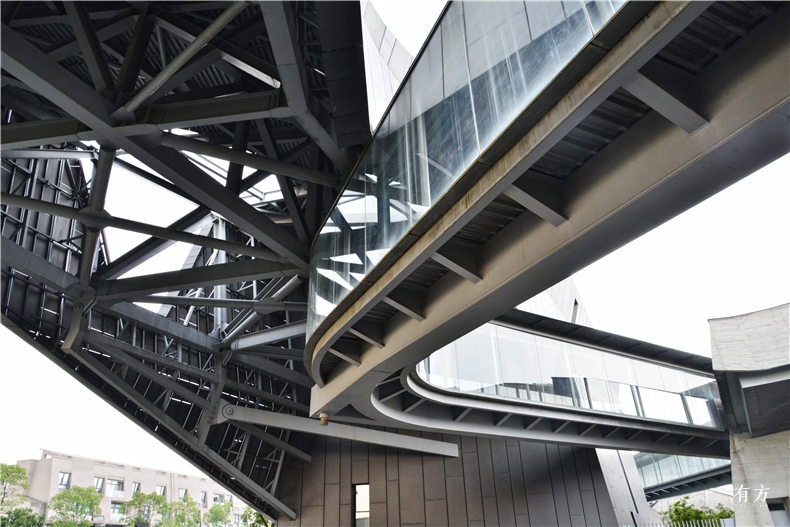

连廊张仁聪DSC 7062

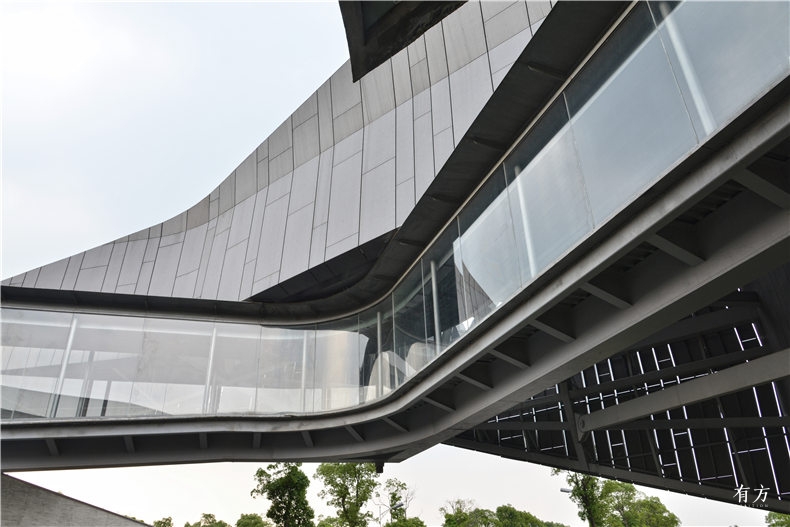

连廊外部1张仁聪6DSC 7093

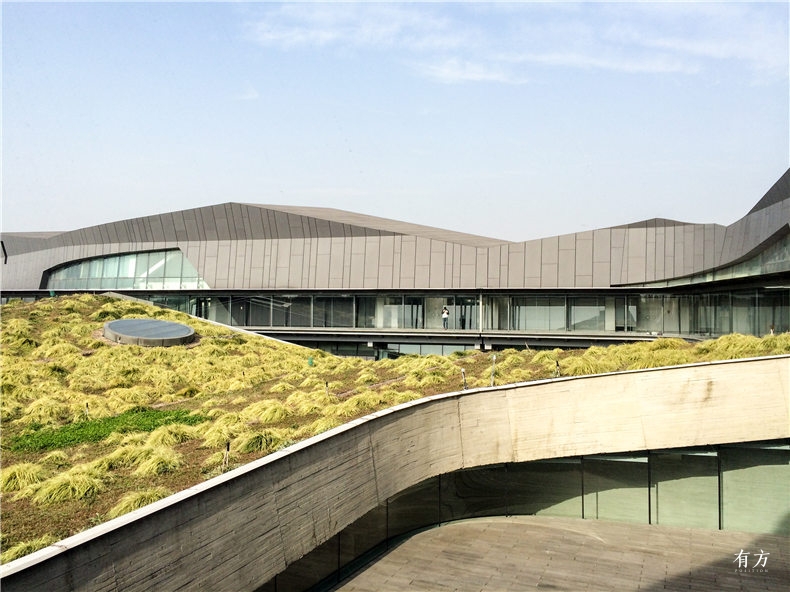

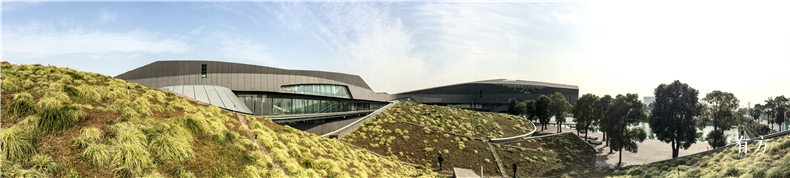

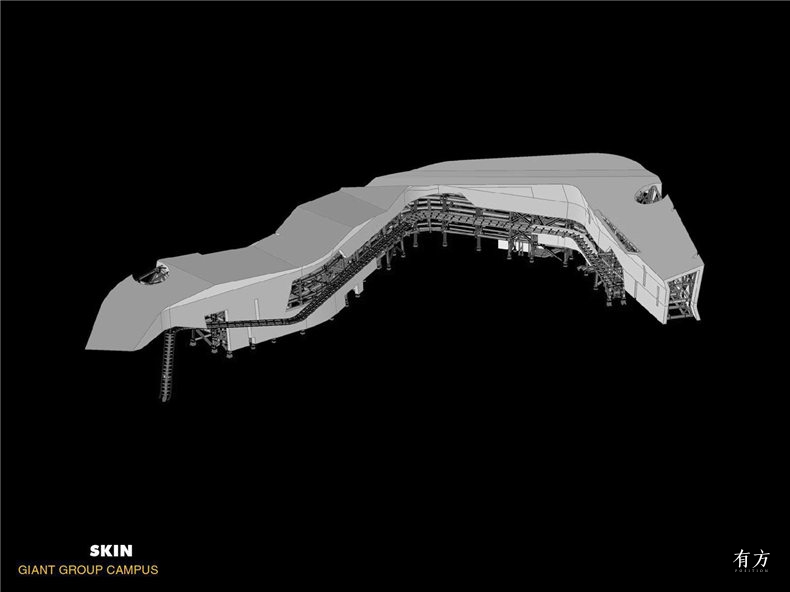

一系列的设计手法使得项目能够最大化能源的使用效率以及增加舒适性。西侧办公中心的景观绿色屋顶提供了热保护层，以此减少热辐射以及冷却支出。立面的双层表皮以及隔热玻璃幕墙能最小化太阳得热，并改善整体能源使用效率。主要的流线空间、娱乐设施以及广场都提供了给员工交流的机会。办公建筑的窄形体量以及天光系统保证了员工能连续地使用自然光线。

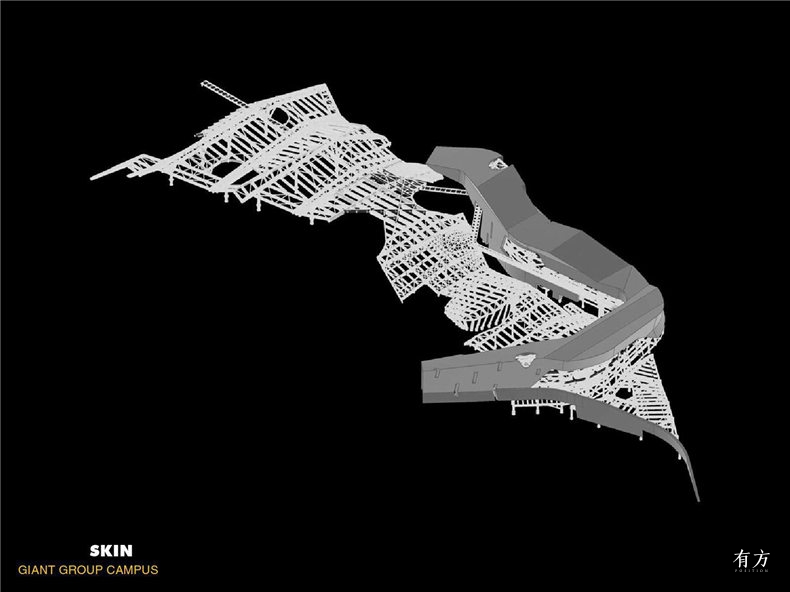

A range of features on the project maximize both energy efficiency and occupant comfort. The West Campus’s landscaped green roof provides thermal mass that limits the heat gain and reduces cooling expenditures. The façade’s double skin and insulated glass curtain wall minimize solar heat gain and improve overall efficiency. The central circulation spine, along with the recreational amenities and plazas provide opportunities for chance encounters and places for employees to gather without the confines of cubicles or unnecessary divisions. The narrow profile of the office building combined with a system of skylights ensure that employees have continuous access to natural daylight.

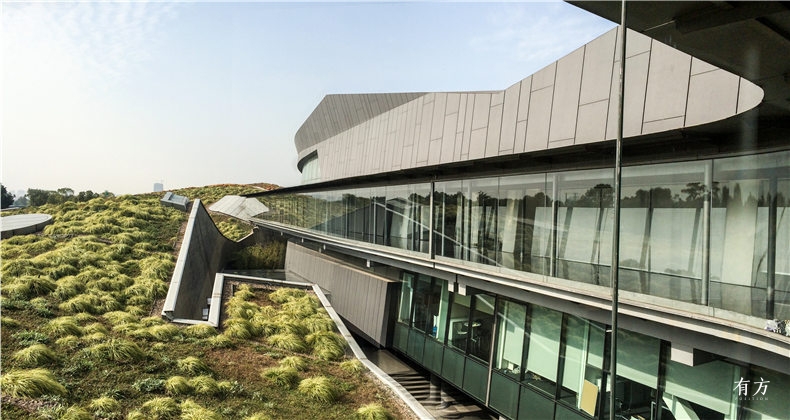

屋顶绿地2
