上坪古村复兴计划之杨家学堂:耕读文化新支点 / 三文建筑

上坪古村复兴计划之杨家学堂:耕读文化新支点 / 三文建筑
原源 | 2018.01.18 19:00

三文建筑

www.3andwichdesign.com



上坪古村地处福建省三明市建宁县溪源乡,历史悠久,文化底蕴深厚,有“书香水村,明水绕古村”之名。在三文建筑上坪古村复兴计划中,2017年10月,水口节点完工;2017年12月,杨家学堂节点与大夫第节点相继完工。本篇为杨家学堂节点。

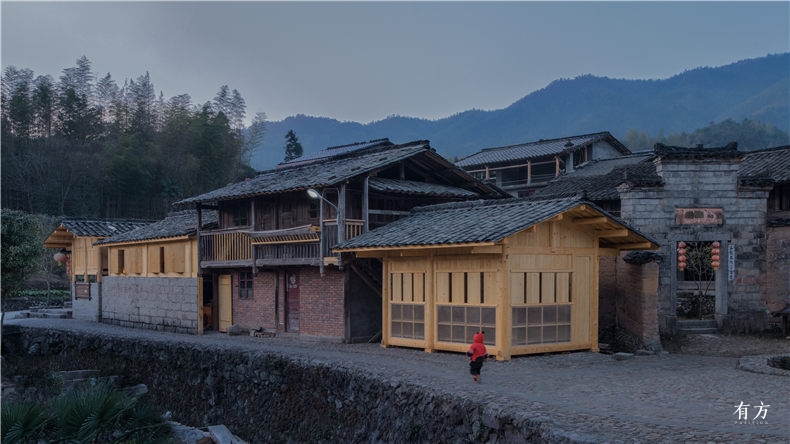

头图杨家学堂概貌





重拾耕读文化

杨家学堂节点位于上坪村两条溪流的交汇处,是入村后的道路分叉口。此处有杨家学堂,相传朱熹曾在这里讲学。选择在这个地点进行节点改造设计,既考虑了旅游人流行为的需要,也兼顾了上坪古村的历史文化。

Yang’s School Area is located at the intersection of the two streams in Shang Ping Village where two main trails dispatch from the entrance. That’s the reason of being important geographically. According to historical legend, Mr. Zhu Xi, a national historian and educationalist, has lectured  in Yang’s School and created great poems as well as calligraphy here. The design of this part is to transform historical site into a tourist spot and unveil the great history of Shang Ping Village.



改造对象是杨家学堂外几间废弃的农业生产用房:杂物间、牛棚、谷仓。设计团队希望将原来的建筑改造为一个书吧,为观光者提供一个休息和了解村庄历史文化的地点,更为重要的是为当地人、特别是孩子提供一个可以阅读,可以了解外面世界的窗口,并为重拾“耕读传家”的文化传统提供支点。

The design includes a few deserted agricultural buildings, such as utility rooms, cowsheds and bas. The design team hopes to transform the original buildings into a bookstore which provides space for tourists to lea about the history and culture of the village. Meanwhile, it also provide locals, especially children, with a place to get knowledge from the outside world. It is a great opportunity to indicate a well-known Chinese tradition called "Cultivation and reading is to bequeath to the family".



杨家学堂节点原貌 副本
杨家学堂节点原貌

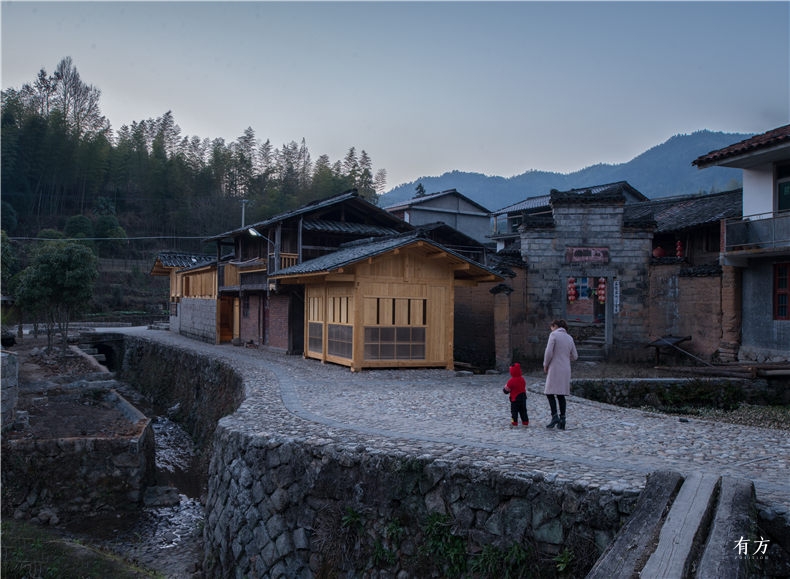

杨家学堂概貌母子耕读文化后
杨家学堂概貌



动静之间

在前期踏勘中,设计师发现现有杂物间和牛棚在空间上有很大差异。杂物间相对高大,内部空间开放;而牛棚则正好相反,因为原有功能的需要,空间矮小、黑暗,几个牛棚之间由毛石分隔,上部还有一个低矮的二层用于存放草料。

In the early phase of site analysis, designers found thatutility room and cowshed are very different in terms of spatial identity. The utility room is relatively tall with accommodated interiors , while the cowsheds are lower and darker. Several cowsheds are separated by rubble walls and second floors are used for storing forage originally.



空间的差异和“瑕疵”带来了空间改造的困难,也为改造后的建筑叙事提供了戏剧性元素,这正是改造项目有趣的地方。利用原有空间的特点,设计团队将新建筑定义为“一动一静”两个部分。

Spatial differences and ‘flaws’ bring about the difficulty of retrofitting these existing spaces. In the mean time, it seems to be a dramatic element for reforming architectural narrative, which is just an interesting moment for the project. By using the characteristics of the original space, the design team defined the new building as a combination of ‘Live and Calm’ .

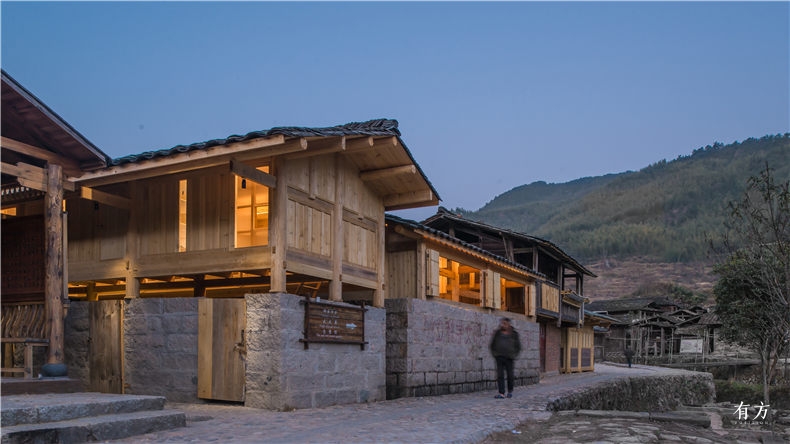

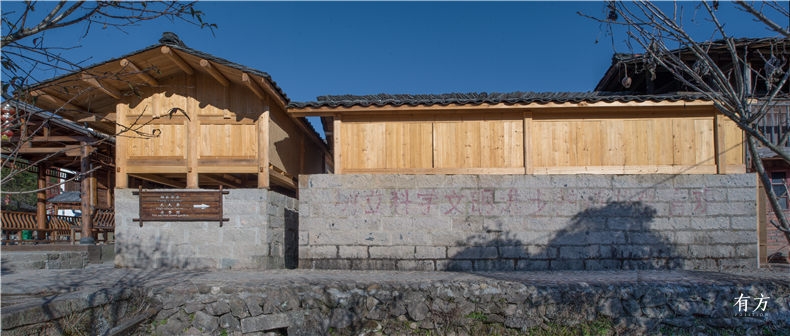

杨家学堂的新建筑分为一动一静两个部分2

杨家学堂的新建筑分为一动一静两个部分
杨家学堂的新建筑分为“一动一静”两个部分



广悦

“一动”被称为“广悦”,是改造后书吧的售卖部分,这里相对热闹,拿书借书,买水喝水,设计团队为上坪村创作的文创产品也在这里展示、销售。这里是上坪村对外的一个窗口,外来人可以在这里阅读古村的历史,村里人也可以透过物理性的窗口(建筑朝向村庄的一面采用落地玻璃的方式将书吧和村庄生活连在一起)和心理的窗口,与外面的世界进行对话。

‘Live’ refers to the sales space in Boostore transformed by utility room. It is relatively active to be here when exchanging books and sales activities happen periodically. Also, cultural products designed by the team are sold at this coer. Reading Bar is regarded as a cultural window connecting the village to the world outside. Visitors can get to know more about the village while local residents see the outside from a physical window(a full height glass door facing to the village ) and psychological one. It is called ‘Guang-Yue Granary Bookstore’ .

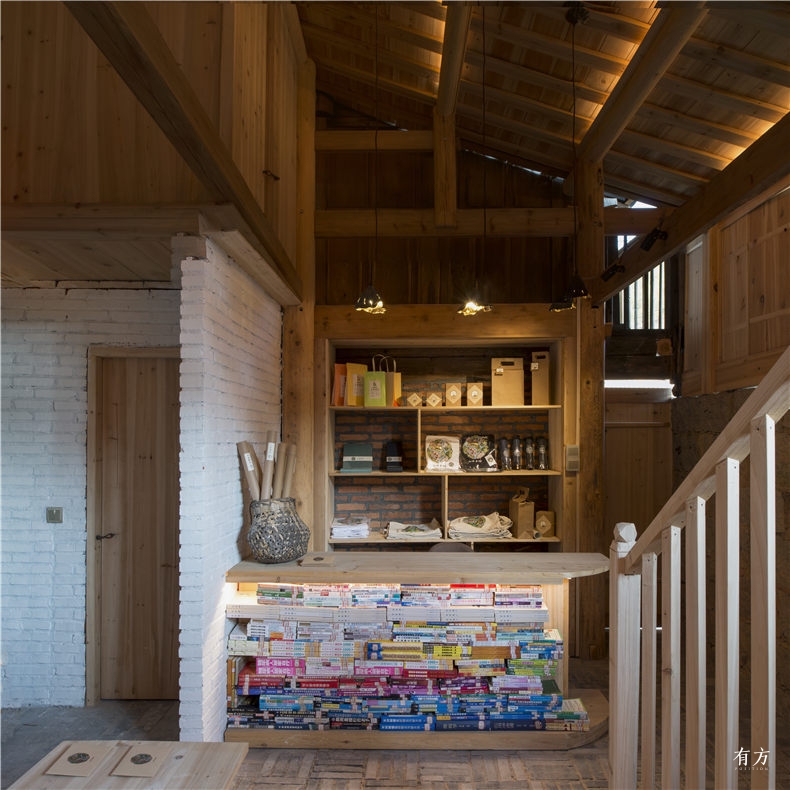

买水喝水广悦书吧吧台空间
“广悦”书吧吧台空间

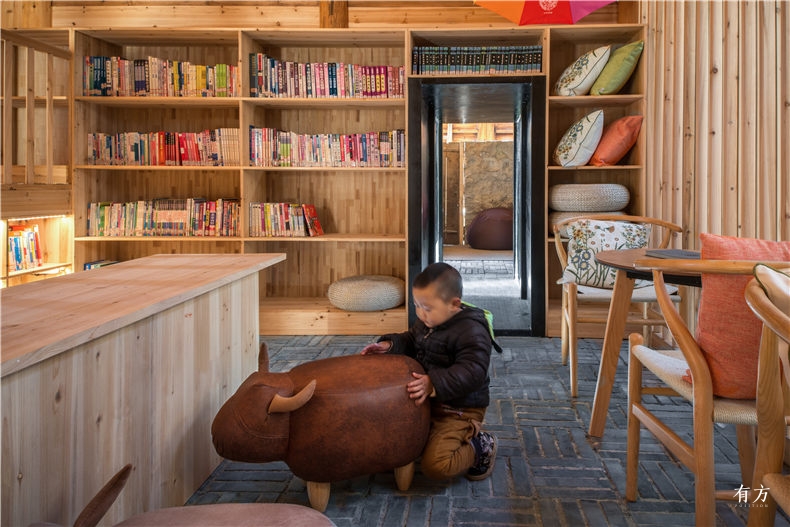

广悦书吧室内
“广悦”书吧室内

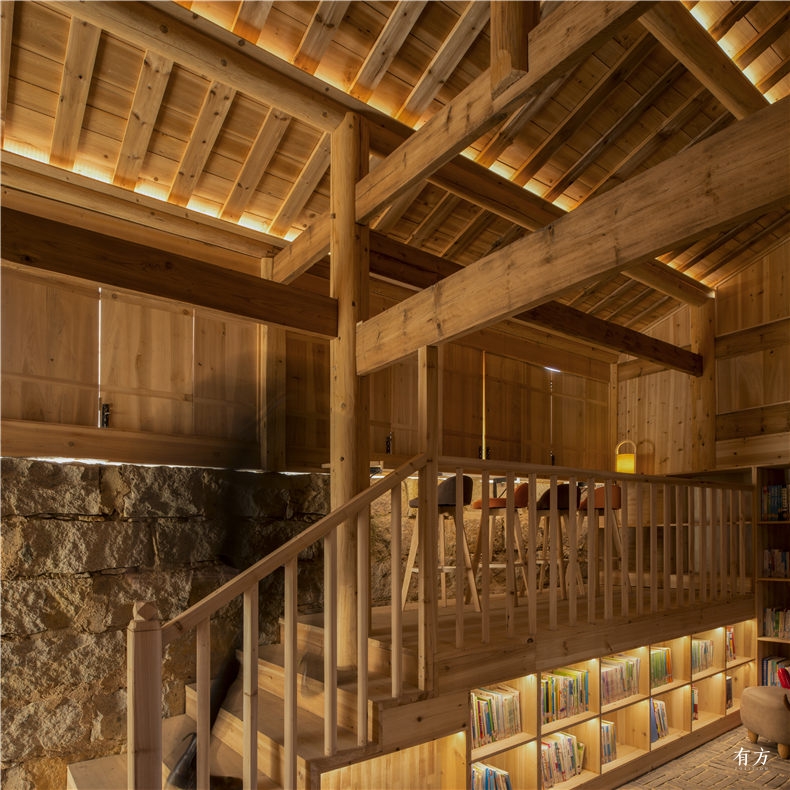

广悦书吧内夜间灯光效果
“广悦”书吧内夜间灯光效果

原有建筑朝向溪流的一侧是封闭的毛石墙,开窗很高,但设计又希望将溪流和对面的田园景观引入书吧。设计师并没有降低原有窗口,而是在室内加设了一个高台,人们需要走上高台才能从窗口看到外面。这样做一方面尊重了原有建筑与溪流、道路、村落的关系,保持了建筑内部和溪流之间“听水”的意境,另一方面也满足了人们登高远望的要求,也丰富了室内空间。建筑面向村庄的一侧,原有的围墙已经倒塌,设计师利用一面落地玻璃来重新定义建筑与村庄的邻里关系,也改善了原有建筑采光相对不理想的问题。

In the opposite of the building, the original surface across the stream is a solid wall with a high window on it. However, the landscape is so nice to be seen from the building that designer added a platform inside, on which people enjoy the view. This design principle maintains the existing relationship between interior and exterior. Thus, when people stay inside, stream is kept invisible for enjoying sound only. If visitors still wants to see the stream, one step on the platform makes it a great difference. A full-height glass window is embedded in the other side of the building to generate a new relationship with its’ neighbor, the village, to provide a great solution for better natural lights.

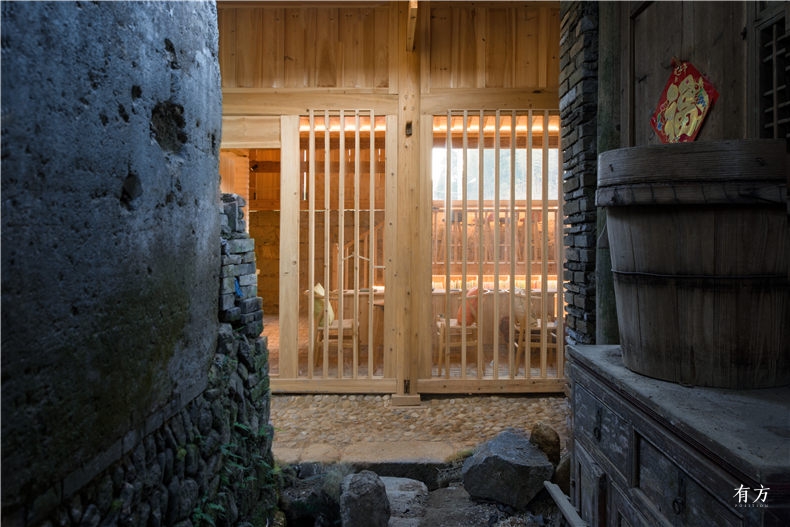

从杨家学堂的墙缝中看广悦书吧
从杨家学堂的墙缝中看“广悦”书吧

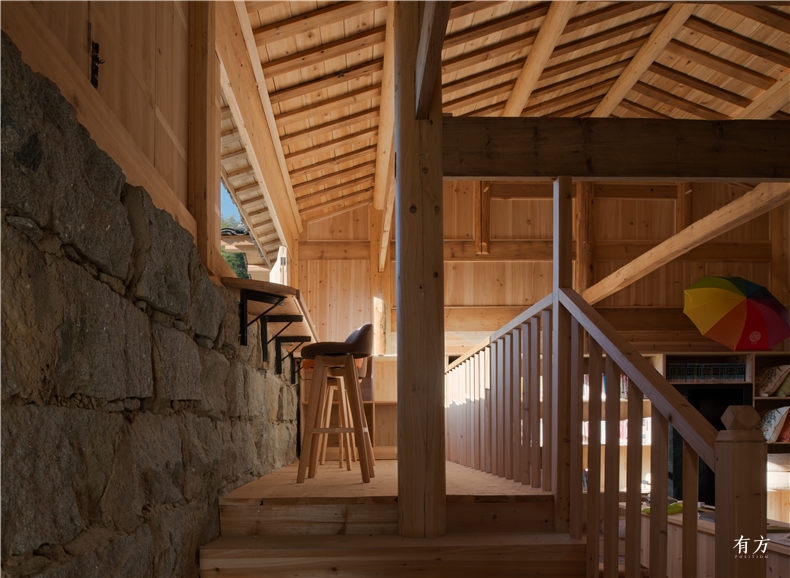

广悦书吧高台空间

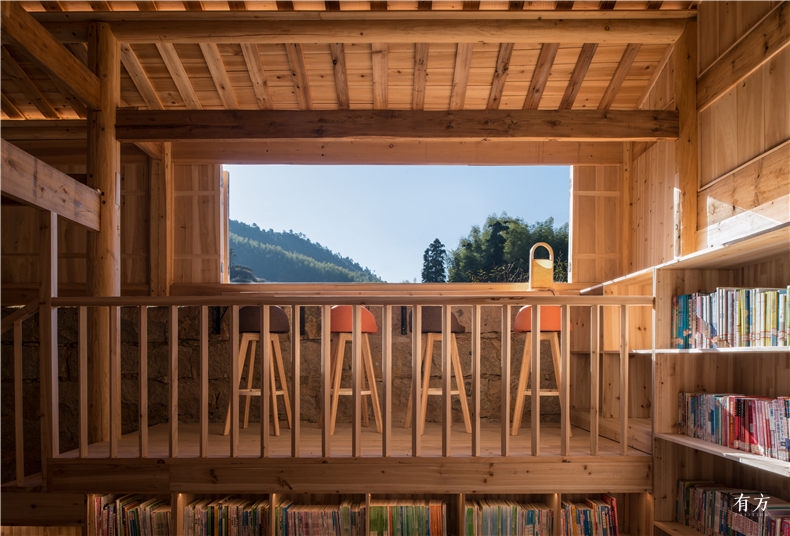

广悦书吧内设计师在室内加设了一个高台
在室内加设一个高台



静雅

“一静”是读书、静思的空间,命名为“静雅”。它由牛棚改造而成。设计师认为原有建筑最有意思的空间模式是上下两层相互独立又联系的结构:下面为牛生活的地方,由毛石磊筑而成,狭小黑暗;上面是存放草料的地方,木结构,同样狭小,相对黑暗。上部的“木房子”是直接放在下面的石头围子墙上的,它们之间在物理流线上是分离的,上部空间不会通过下面的空间进入;但在使用逻辑(牛吃草)上却是关联的。

‘Calm’ refer to reading and meditation, named ‘Jing-Ya’. It is transformed from former cowsheds. The identity of this space, connected but separatedfrom top to bottom, is special to be kept. The lower level enclosed by rubble used to be dark and narrow living space for cow, while narrow wood-made upper level were used for forage. Wood structure seats on rubble part. Two levels are separated spatially (entrance are separated) but connected logically (cow on the bottom eats forage)in function.

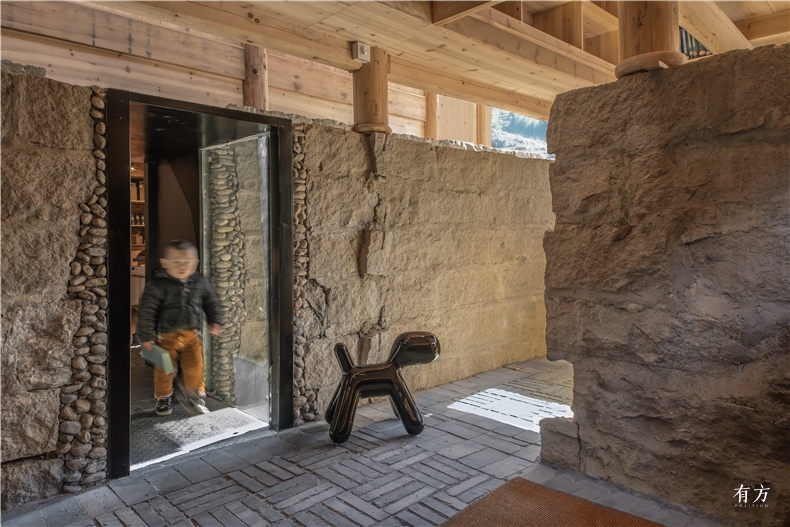

静雅书吧由牛棚改造而成
“静雅”书吧由牛棚改造而成

改造沿用了这个空间模式,但将上面的“木房子”稍微抬起;这一方面增加了下部空间的高度,另一方面将阳光引入原本黑暗的牛棚。这里将成为阅读者的新窝,安静、封闭、不受外部干扰,唯一能打扰你读书的是从两层空间之间的缝隙射入的一缕阳光。原有的毛石墙面被保留,地面上安置着懒人沙发,柔软与强硬相对,温暖与冰冷相对,“新居民”与“老住户”相对......戏剧性冲突就产生于这对比之中。二层的草料房被重新定义:原来的三个隔离空间被打通,草料房的一半空间被吹拔取代,在吹拔空间与新草料房之间采用了阳光板隔墙,形成了半透明的效果;草料房仍然很低矮,进入也必须从户外爬梯子而入——这很是不舒服,却也是设计师有意为之。设计师希望这里的使用回到一种“慢”的原始状态,有点类似苦行僧,使用者需要小心地体味身体与空间,把都市的张扬收起,在读书中反思人与自然、人与环境的关系。

Maintaining this spatial character but elevating the upper ‘wood house’, it tus out to be a new home for readers since first floor is higher and  gets more natural light. Nothing could disturb this quiet and enclosed space except the penetrated sunlight. The solid rubble wall on the first floor were maintained, contracting with cosy bean bag. Soft versus hard, warm versus cold and new versus old are co-existing in a dramatic space. The second floor was re-defined accordingly: three rooms are integrated into one with an atrium up to half size floor area. Glass panels are installed over the atrium to create more transparency. The forage room is still designed to be lower in height and must be entered from the outside by a ladder. This kind of ‘uncomfortableness’ is intentionally emphasized, creating a sense of slow and   primitivity. The design is trying to allow people to get a monkish experience, to experience the space with cautiousness. Thus, all readers come to here would retrospect the relationship between human, space and nature without any disturbance of mode life.

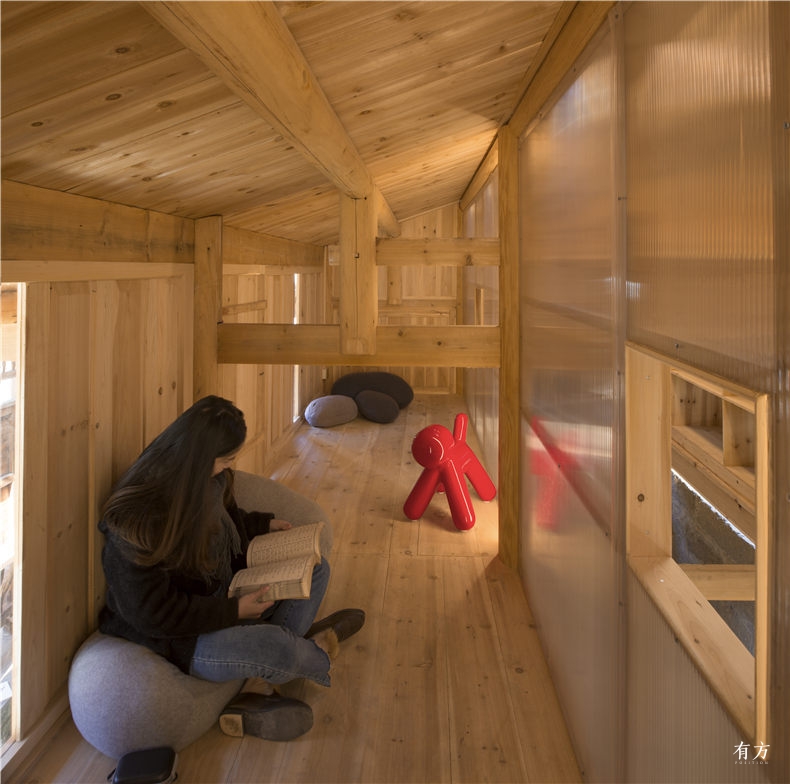

静雅书吧二层阅读空间
“静雅”书吧二层阅读空间

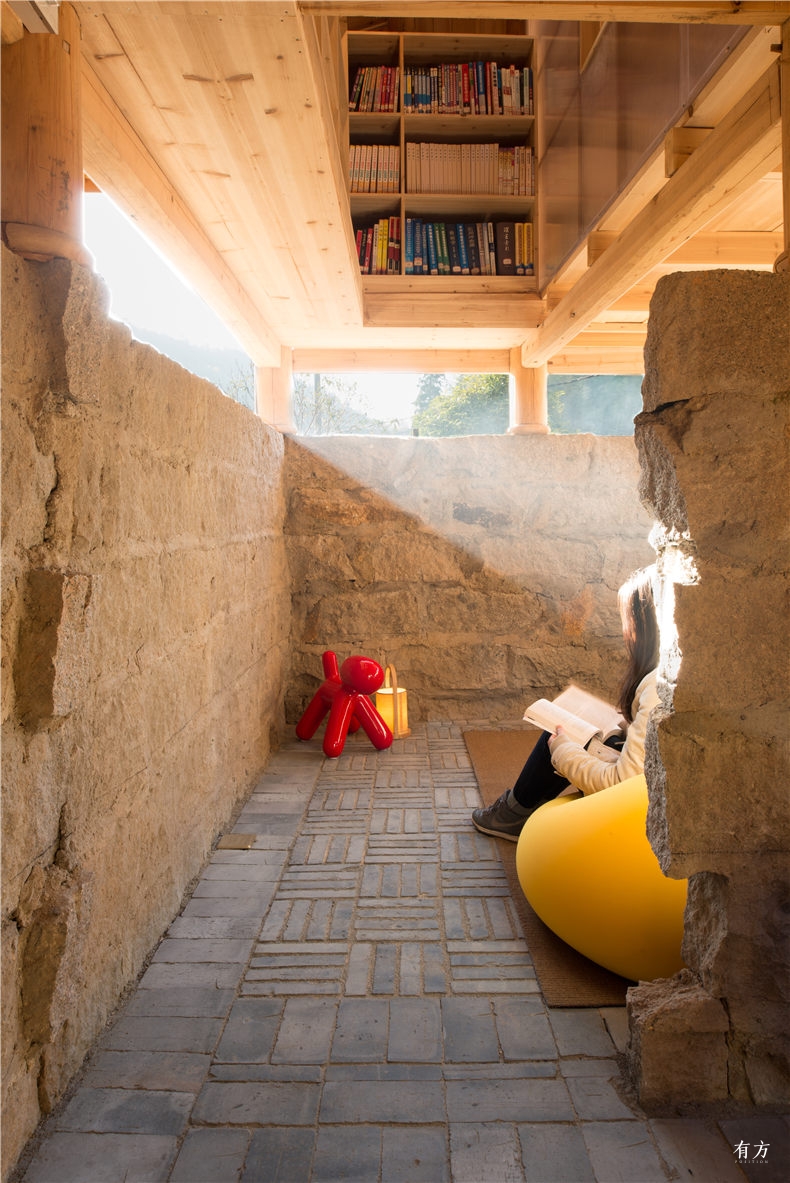

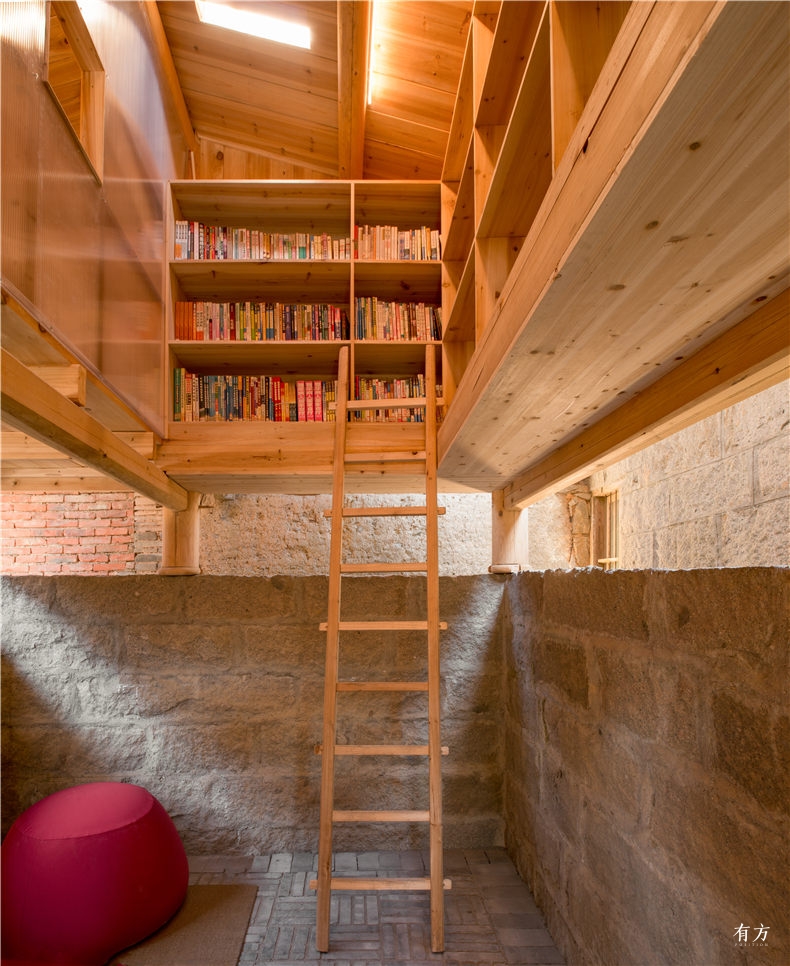

静雅书吧内木房子被稍微抬起将阳光引入原本黑暗的牛棚 2

静雅书吧内木房子被稍微抬起将阳光引入原本黑暗的牛棚
“静雅”书吧内,“木房子”被稍微抬起,将阳光引入原本黑暗的牛棚

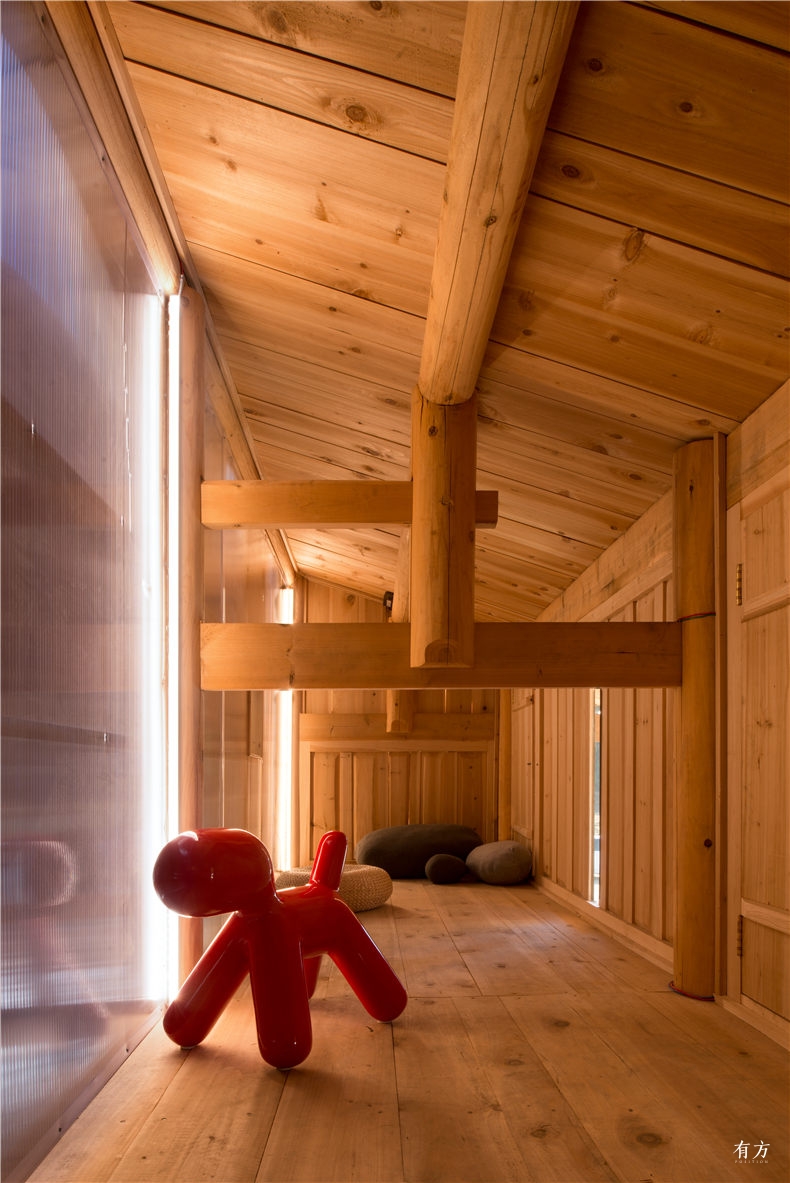

阳光板隔墙形成了半透明的效果
阳光板隔墙形成了半透明的效果

对这种“慢”的要求同样反映在一动一静两个空间的连接位置上。一个刻意低矮的过道被设计出来,成年人需要低头弯腰慢慢通过。设计师希望以此空间的处理暗示“谦逊”这一中华民族的传统美德:低头,保持敬畏。

The requirement of “Being Slow” is also revealed at the hallway. When being here, visitors should walk slowly through it to the other side. This intentionally designed lower space is to indicate a “modest” tradition in China: Bow your head and be in awe.

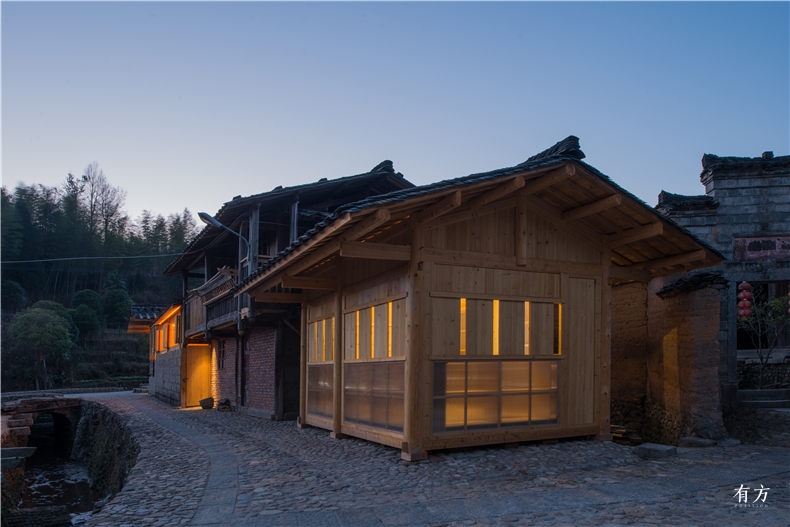

杨家学堂夜景

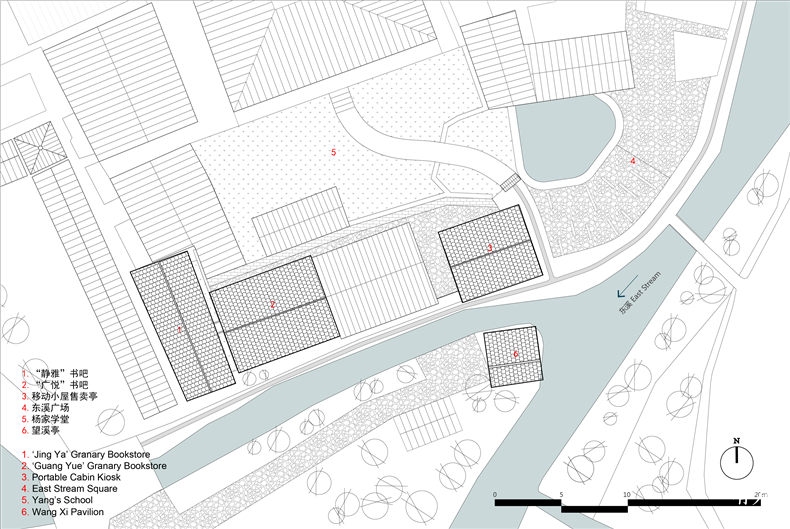

杨家学堂节点总平面图 Site Plan of Yangs School Area 副本



杨家学堂节点总平面图

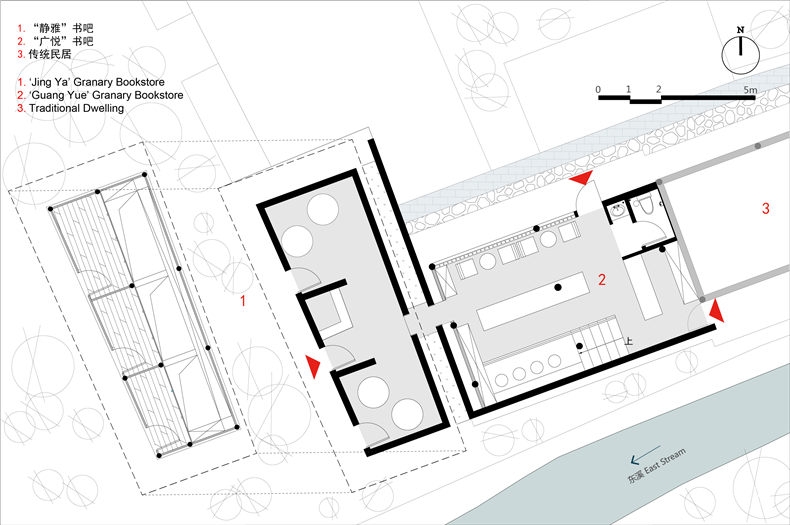

书吧平面图 Plan of Granary Bookstores 副本
书吧平面图

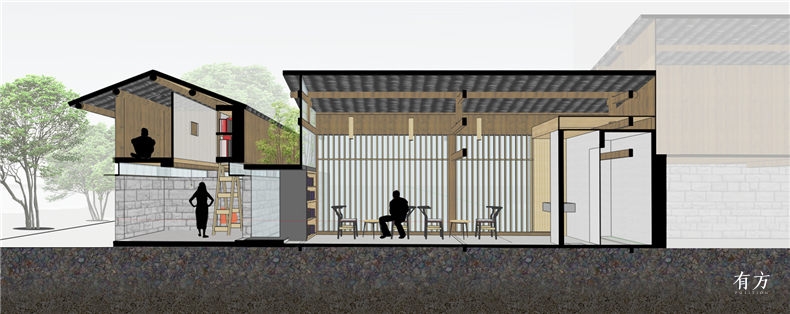

书吧剖面图 Section of Granary Bookstores 副本
书吧剖面图



项目信息:

项目名称:上坪古村复兴计划之杨家学堂篇

项目地点:福建省三明市建宁县溪源乡

业主:溪源乡人民政府

建筑设计:三文建筑/何崴工作室 (www.3andwichdesign.com)

主持建筑师:何崴

建筑设计团队:赵卓然、李强、陈龙、陈煌杰、汪令哲、赵桐、叶玉欣、宋珂

设计面积:2700平方米

设计时间:2016年8月-2016年11月

建造时间:2016年11月-2017年12月

照明设计:清华大学建筑学院张昕工作室

照明设计团队:张昕、韩晓伟、周轩宇、牛本田

室内施工图设计:北京鸿尚国际设计有限公司

摄影:周梦

Project Information:

Project Name: Shangping Village Regeneration - Yang’s School Area

Location: Xiyuan Town, JianningCounty, Sanming City, FujianProvince, China

Client: People’s Govement of Xiyuan Township

Architectural Design Company: 3andwich Design / He Wei Studio (www.3andwichdesign.com)

Principal Architect: He Wei

Architectural Design Team: Zhao Zhuoran, Li Qiang, Chen Long, Chen Huangjie, Wang Lingzhe, Zhao Tong, Ye Yuxin, Song Ke

Building area: 2700 sqm

Period of Design: Aug 2016 - Nov 2016

Period of Construction: Nov 2016-Dec 2017

Lighting Design: Zhang Xin Studio, Tsinghua University School of Architecture

LightingDesign Team: Zhang Xin, Han Xiaowei, Zhou Xuanyu, Niu Bentian

Interior Construction Drawing: Hongshang Design

Photographer: Zhou Meng
