悬挑屋顶下的光与电:英飞特电动汽车充电站 / GLA六和设计

悬挑屋顶下的光与电:英飞特电动汽车充电站 / GLA六和设计
编辑:易智丽(实习生);校对:田丽(实习生) | 2018.05.22 11:31

GLA六和设计

www.gla-design.com



英飞特电动汽车充电站

英飞特电动汽车充电站位于英飞特杭州总部基地大楼北侧,是该企业光电转换充电技术的一个示范样本,也是该区域为公众提供服务的一处配套设施。建筑师需要在此建设一处能够与电动汽车的时代背景相呼应,又能实现如传统“加油站”般快速标准化建造的技术试点。

Inventronics Electric Vehicle Charging Station is located to the north of the base building at headquarters of Inventronics in Hangzhou. It is a demonstration example of photovoltaic conversion charging technology of the enterprise as well as a public supporting facility for public in the area. Architects are required to build a pilot charging station which can not only match with the electric vehicle background, but also be built as quickly as traditional petrol station in a standardized way.

01 投稿总图 Model

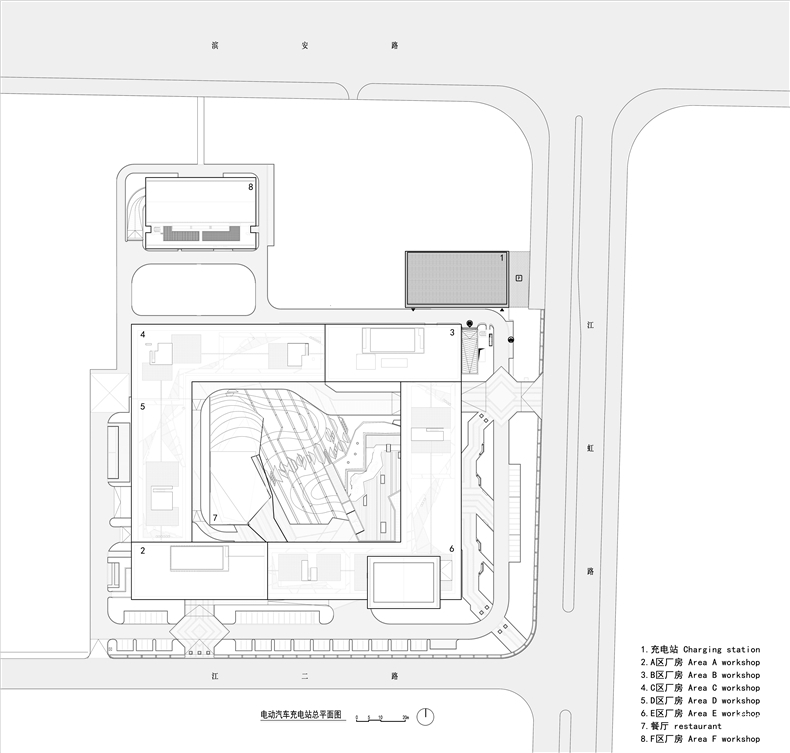

总平面图  ©GLA六和设计

005

006

002

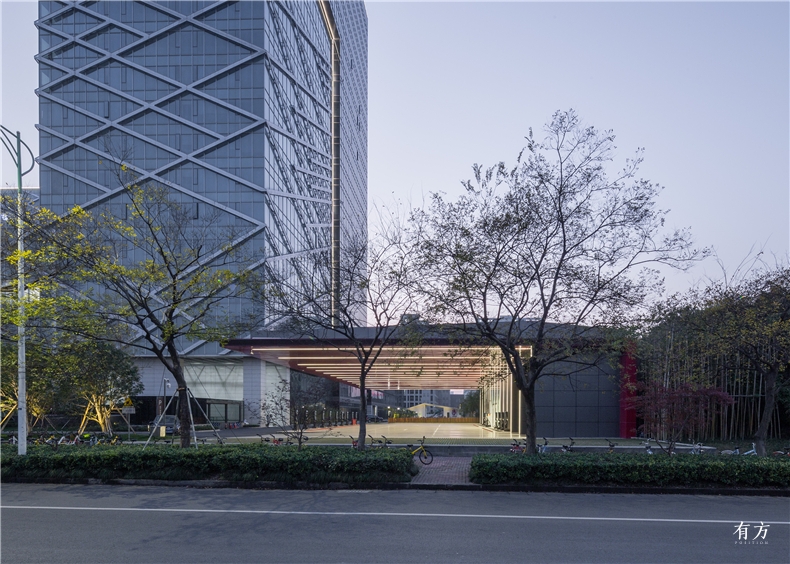

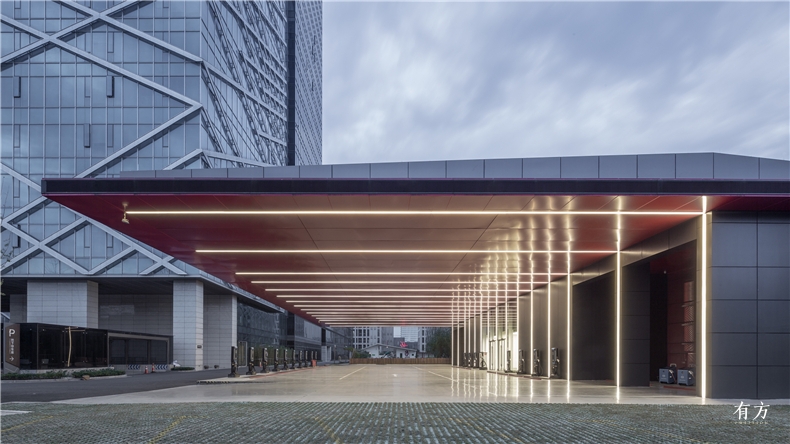

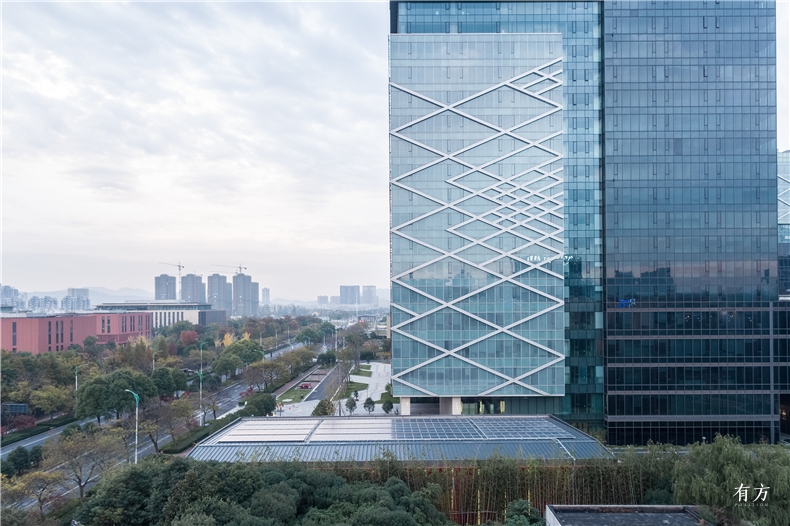

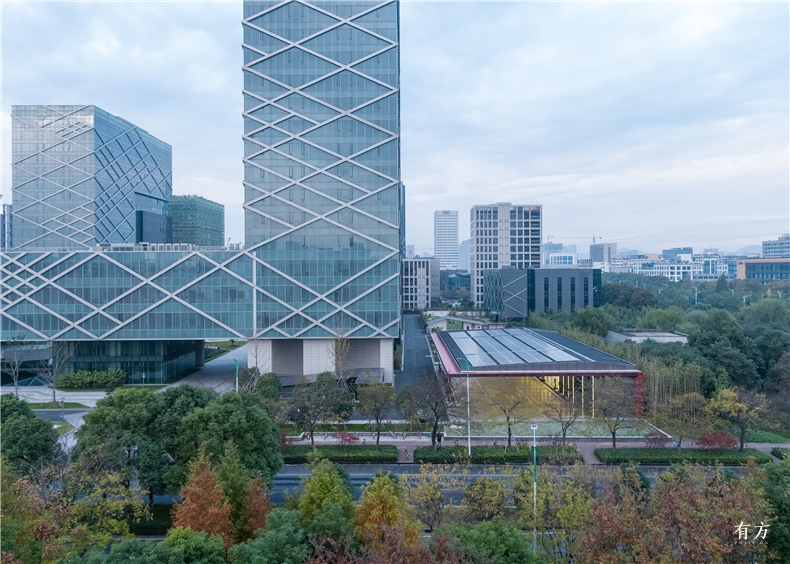

英飞特杭州总部基地大楼北侧的电动汽车充电站  摄影:shiromio studio

通常情况下“电”是不可见、更不可触摸的。然而这一实验性项目中业主的主攻产品恰好是LED光电驱动领域,于是由电驱动的各式人工光成为了这一建筑的可视化语言载体,以此传达正在悄然发生的由传统化石能源驱动向新能源驱动转换的时代趋势,并通过标准建造、技术复合、开放姿态这三种策略来对充电站的建造、结构与形式进行回应。

Usually, “electricity” is neither visible nor touchable. However, the major product of this experimental project focuses on LED photoelectricity driving. Therefore, kinds of photosystems driven by electricity become the major visible language carrier of this architecture design, which conveys the quiet trend of conversing from traditional fossil energy driving to new energy driving. Strategies of standard construction, technology hybrid, and being open-minded are implemented to go with the construction, structure, and form of the charging station.



001

003

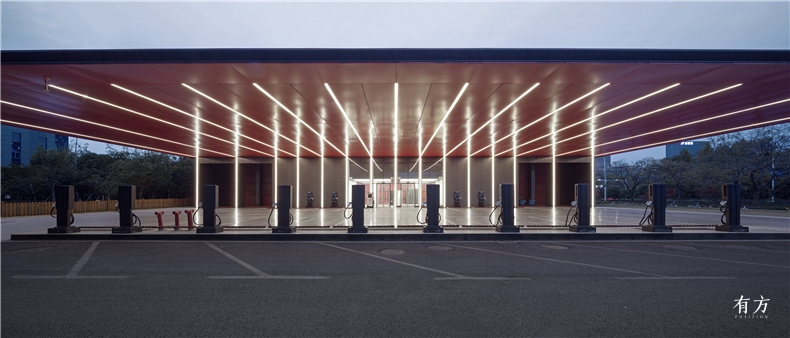

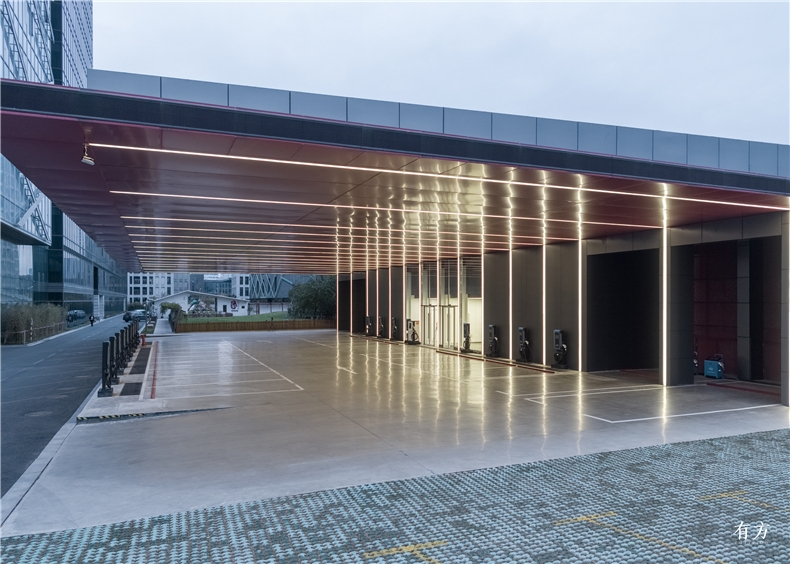

电驱动的人工光  摄影:shiromio studio

建筑屋面主体采用表面红色与灰色的铝塑复合板表皮、LED屏及人工光源,使其既具有明显的视觉识别性,同时也延续了传统汽车加油站以红色为主色调的一种传统。然而充电站屋面的20米大悬挑,则与传统的加油站全部立柱落地形成强烈视觉反差。这一举重若轻、对抗重力的漂浮姿态呈现出一种互联网时代下更为开放、透明的时代气质,也表达出了这一充电站对于使用者的迎接态度。

The first layer of building roof adopts red and grey APCP Aluminium-plastic composite panel, LED screen and artificial light source, which not only allows the station to be visibly recognized in an obvious way, but also inherits the tradition of using red as major color for a station. However, the 20m overhang of the charging station’s roof forms a visible contrast with stand columns of a traditional charging station. This gesture of making “heavier” things “easier” and withstanding the gravity shows features of being more open-minded and transparent of this Inteet time, as well as the welcome from the charging station to its users.

008

011

010

007

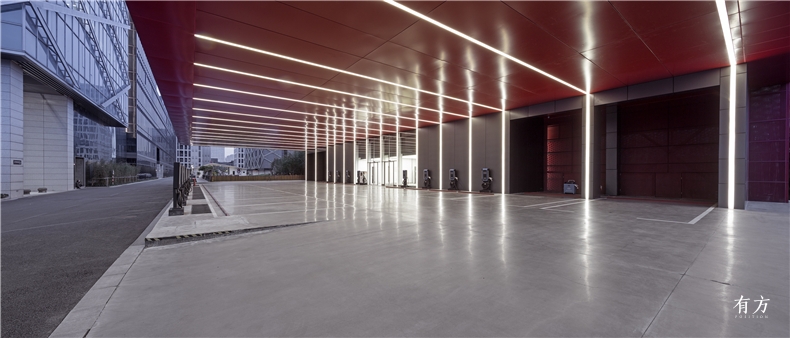

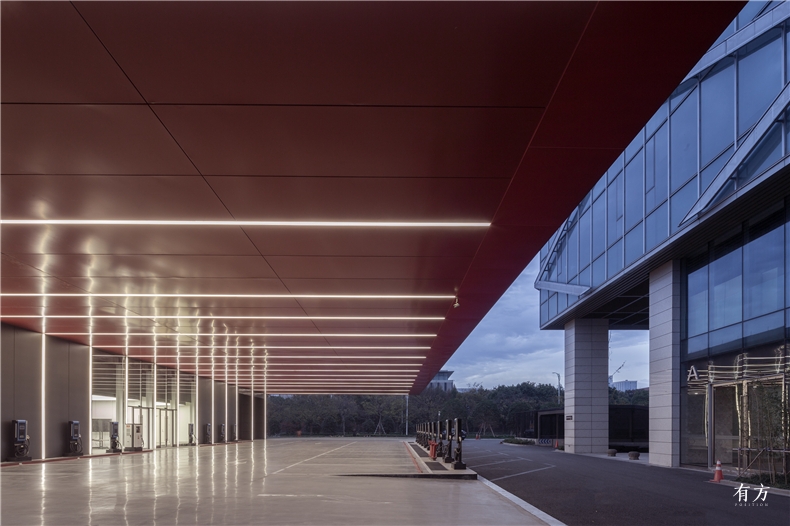

20米悬挑大屋顶  摄影:shiromio studio
012

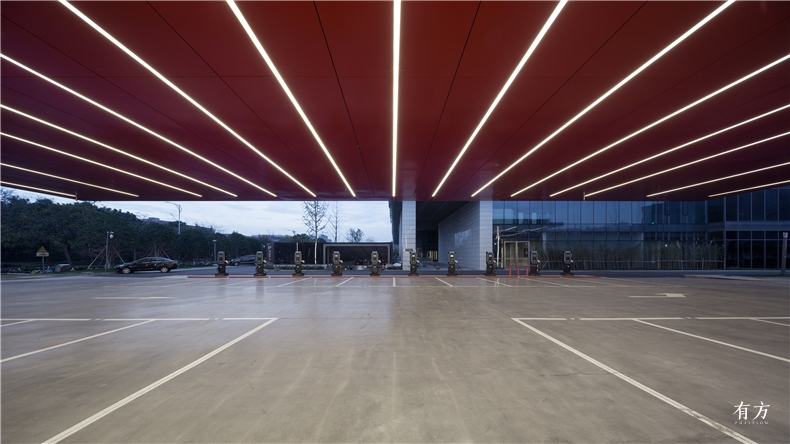

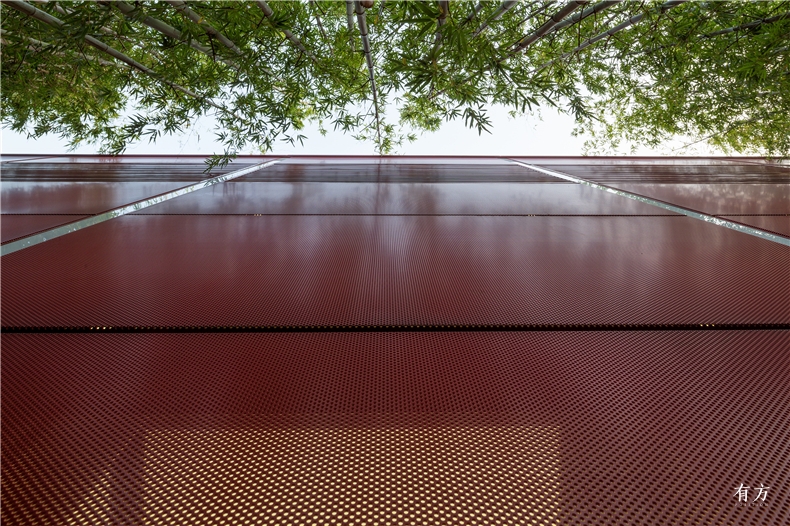

红色与灰色的铝塑复合板表皮  摄影:shiromio studio

项目地面采用了整体感强的水泥金刚砂,室内外墙体和屋顶均采用由钢骨架和铝复合板组成的标准部件。屋面则以铝镁锰合金屋面系统结合太阳能光伏系统构成能源发生器。

The floor of the station uses cement emery, which can provide a sense of wholeness. Interior and exterior walls and roof use standard parts forming by steel frame and aluminum composite panels. The first layer of roof uses aluminum and solar photovoltaic system, which forms an energy generator.

英飞特充电站除了需要进行光伏发电向车辆供电的技术验证,同时也面临着将来充电站大范围推广所需要的快速建造技术验证,因此项目需要在紧凑的空间中同时满足设备展示、能源转换、大巴车及小型车停放充电、客户休息等多种功能,另一方面又需要在预制建筑构件模块内整合各种给排水、强弱电、空调、结构、光电转换、蓄能电站等技术单元和模组。因此无论是建筑主体、室外幕墙、还是室内空间,全部构件均采用模块化设计方式,在工厂完成标准部件的生产后,即可现场快速拼接吊装。这种精细化的设计与建造方式减小了现场施工强度,提高了建造效率,也能适应于不同的场地需求,从而为未来实现该系列充电站的大范围快速推广提供了技术保障。

Inventronics Charging Station not only needs to verify its technology of supplying vehicles with electricity generated by photovoltaic power, but also needs to be verified with the technology of quick construction in consideration of it will be promoted extensively in the future. Hence, on one hand, the project needs to have functions of equipment display, energy conversion, parking and charging of buses and small vehicles, and rest room for guests in a small space.  On the other hand, prefabricated parts of modules of the station shall integrate technology units and modules of water supply and drainage, strong and weak electricity, air conditioner, structure, photovoltaic conversion, and storage power station. Therefore, all parts for main body of the building, exterior curtain walls, or interior rooms use modules which are produced by the factory in a standardized way and then are jointed on site. This kind of refined design and construction method reduces the on-site construction strength, improves the construction efficiency, as well as suits for different places, providing a technology guarantee for the extensive promotion of such charging station.

02 一层平面

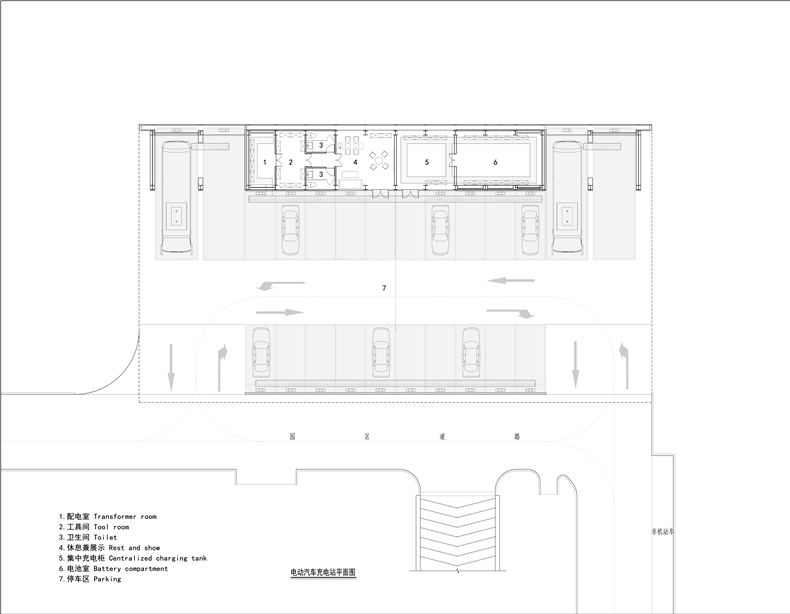

一层平面图  ©GLA六和设计
03 正立面

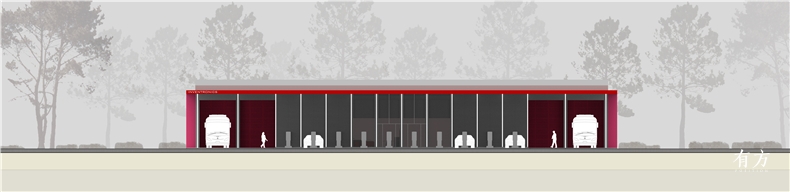

正立面图  ©GLA六和设计
04 北立面

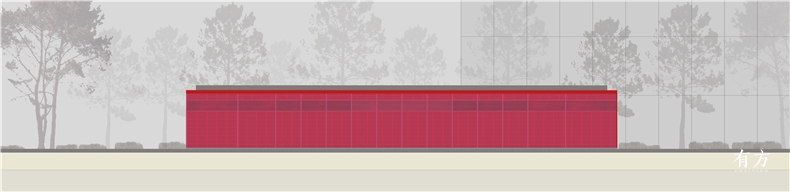

北立面图  ©GLA六和设计

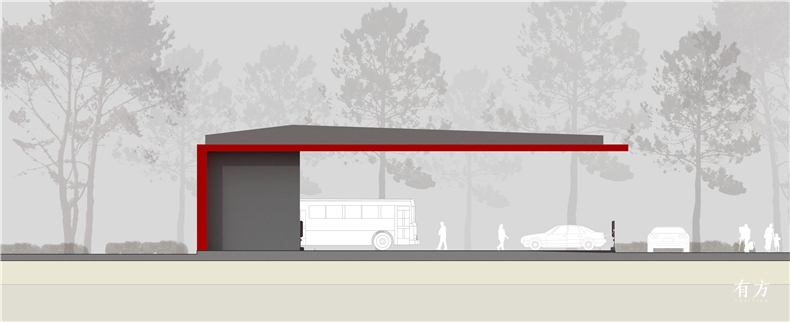

05 立面
侧立面图  ©GLA六和设计

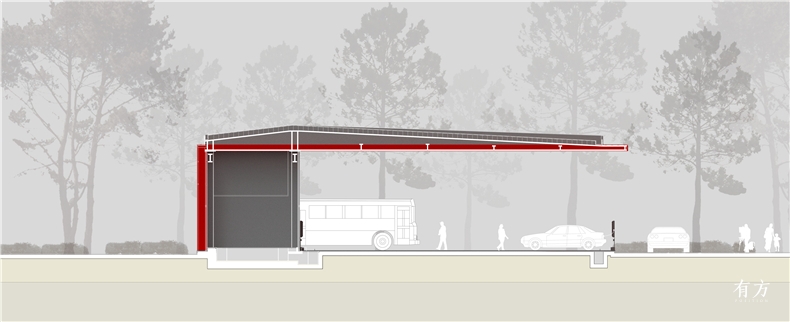

06 剖面
剖面图  ©GLA六和设计
07 材料-Model

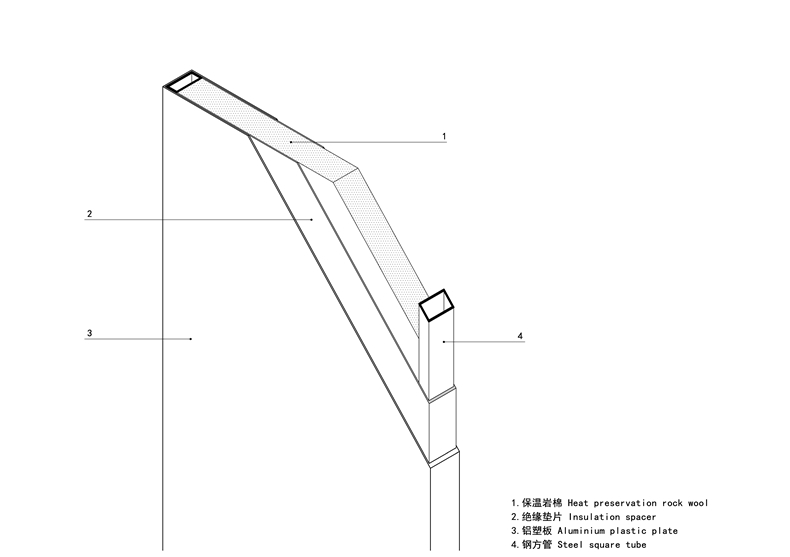

材料详图  ©GLA六和设计

08 节点1-Model

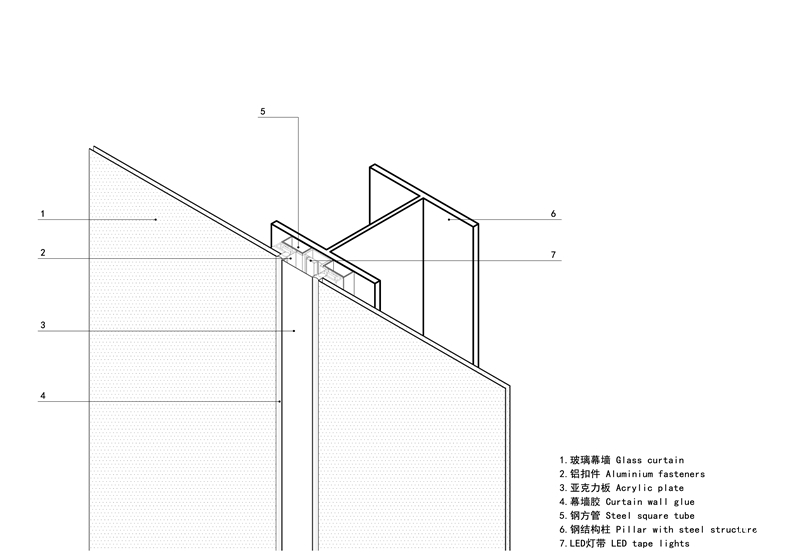

09 节点2 - 副本-Model

10 节点2-Model

11 节点3-Model

12 节点4-Model

13 节点5-Model

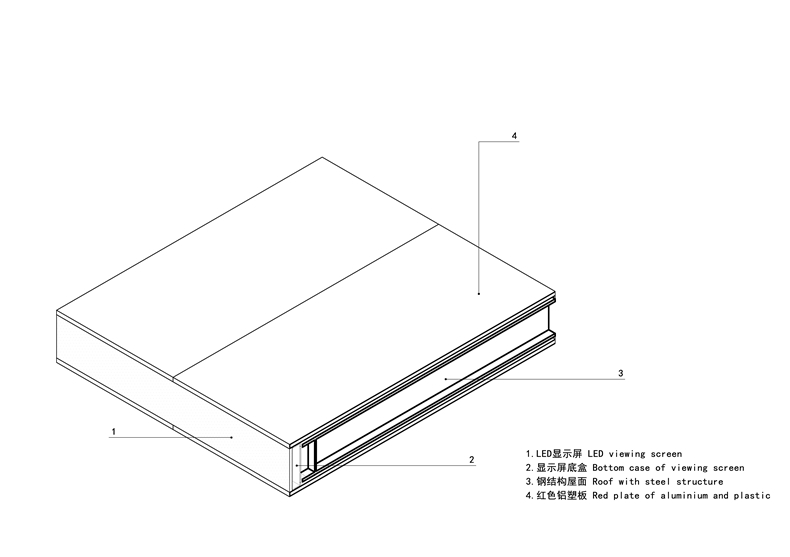

14 节点6-Model

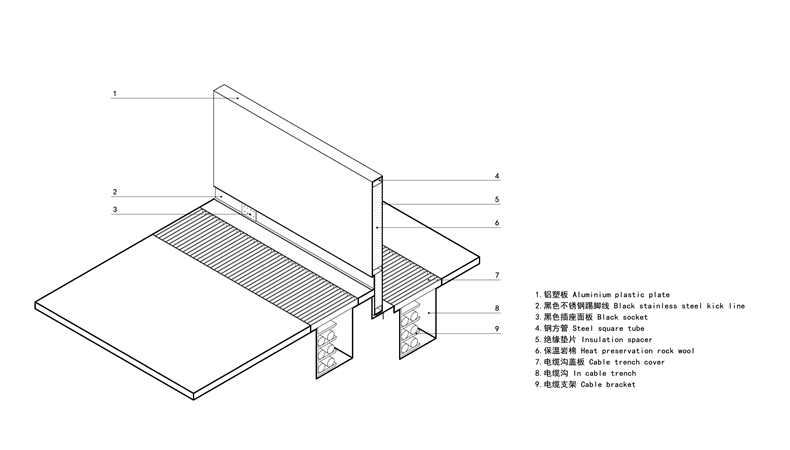

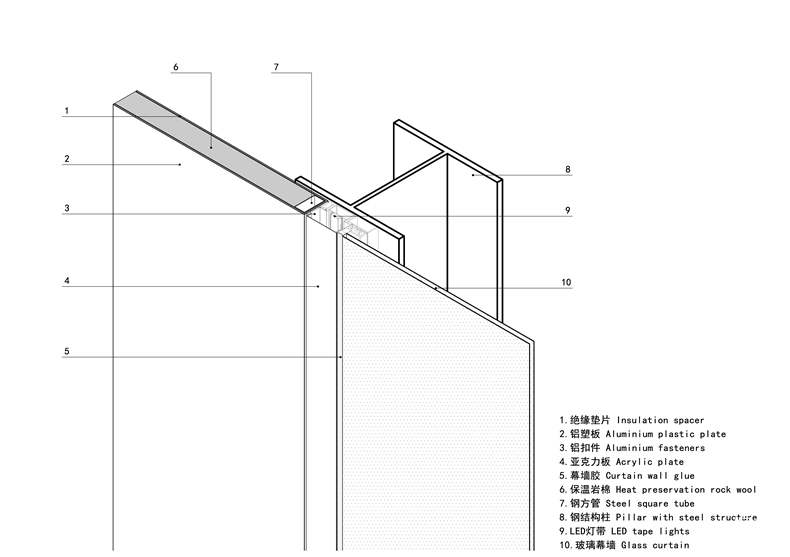

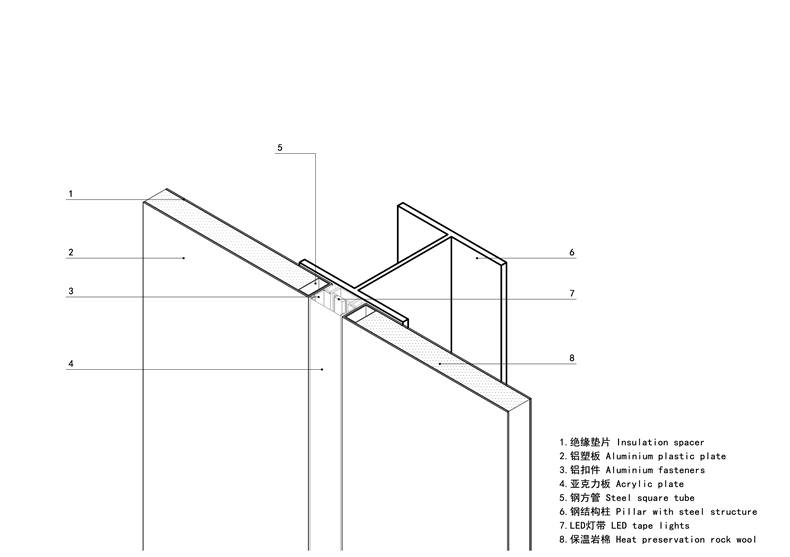

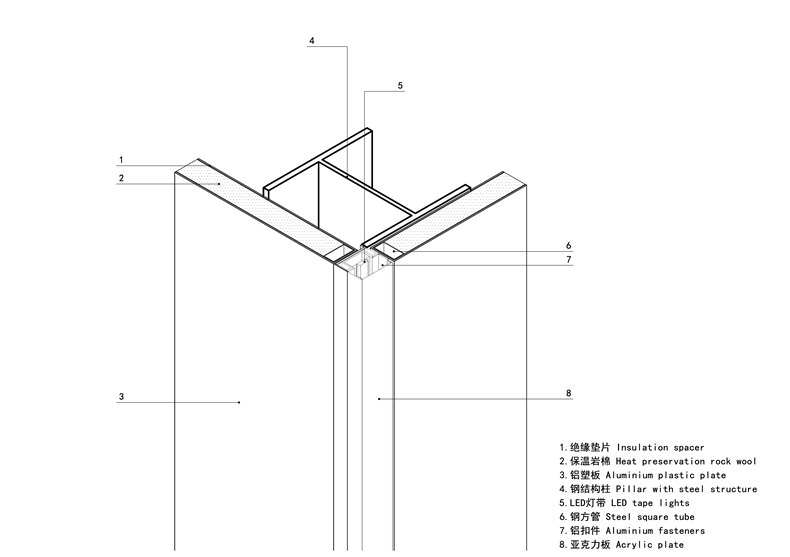

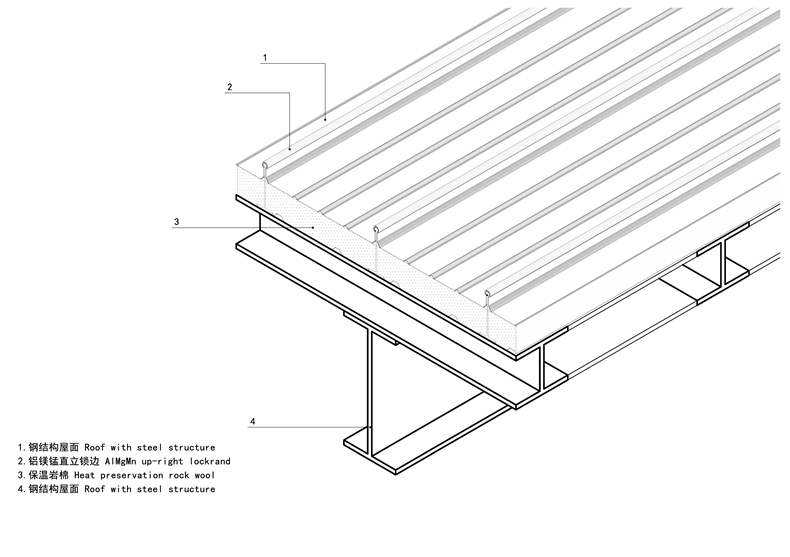

节点详图  ©GLA六和设计



项目名称:杭州英飞特电动汽车充电站

功能:汽车充电站

设计时间:2016

建成时间: 2017

建筑面积:150平方米

建筑师:GLA六和设计

主创建筑师:朱培栋

项目团队:朱培栋、林德鸿、谢道清、周剑、丰建华、黄国华

业主:英飞特电子股份有限公司

摄影:shiromio studio

Project name: Hangzhou Inventronics Electric Vehicle Charging Station

Function: charging station of vehicle

Design time: 2016

Completion time: 2017

Covered area: 150㎡

Architect: GLA

Leading architect: Zhu Peidong

Project team: Zhu Peidong, Lin Dehong, Xie Daoqing, Zhou Jian, Feng Jianhua, Huang Guohua

Owner: Inventronics

Photographer: shiromio studio
