复刻两万年前的记忆:Lascaux IV壁画博物馆 / Snøhetta

复刻两万年前的记忆:Lascaux IV壁画博物馆 / Snøhetta
原源 | 2018.01.31 19:50

Snøhetta

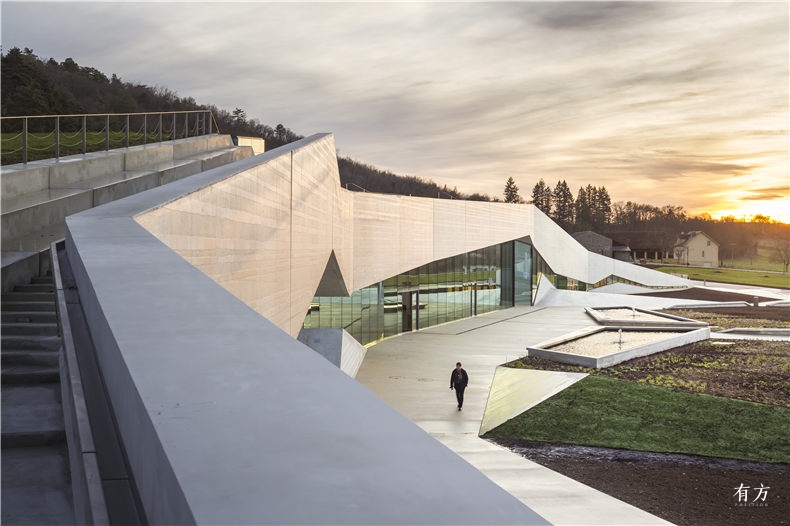

头图



拉斯科洞窟岩画于1940年被发现,并于1948年向游客开放。然而开放不久后,大量游客的到访增加了暴露在开放环境中的壁画的保存难度。1963年,为保护岩画,拉斯科岩洞被永久关闭。这处遗址1979年被列入世界遗产名录,2010年,在洞穴发现70周年纪念之时,国际洞穴艺术中心项目(the Inteational Centre for Cave Art project)宣布了4号壁画博物馆的建造项目。

The Lascaux Caves paintings were first discovered in 1940, and opened to visitors in 1948. Soon after the opening, however, the mass influx of visitors and the exposure to exterior elements had begun to degrade the paintings. In 1963, the original Lascaux Caves were permanently closed to the public to preserve the extraordinary art from irreparable damage brought on by its overwhelming popularity, and the fragile site was granted UNESCO World Heritage Status in 1979. In 2010, for the 70th anniversary of the cave discovery, the Inteational Centre for Cave Art project, Lascaux IV was announced.

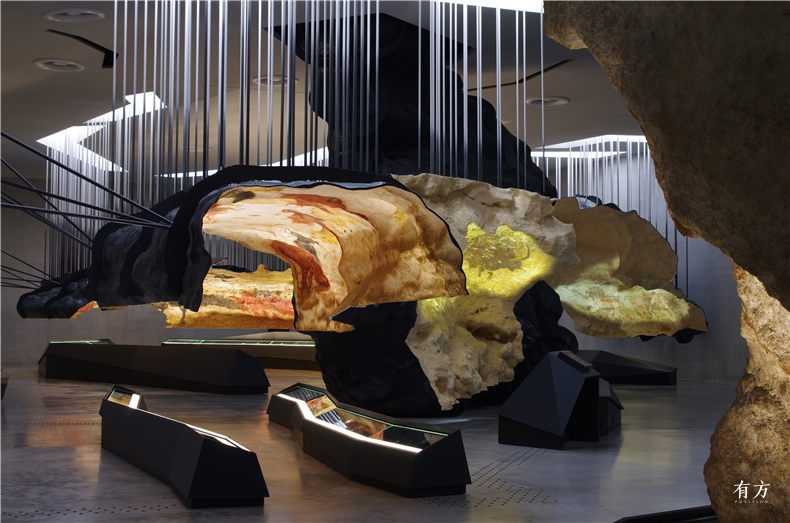

展馆内景

室内1
博物馆内景

拉斯科洞窟4号壁画博物馆位于两处独特地形之间,一侧是有着茂密森林的山坡,另一侧是农业山谷地带。设计将博物馆视为地景的一个切入点(a fine cut in the landscape),邀请游客进入一个奇妙的史前世界。正是在此处,两万年前的史前艺术家创造了非凡的岩画。

The new Lascaux IV Caves Museum is situated at the intersection of two unique landscapes, between a densely-forested, protected hillside and the agricultural Vézère valley. Snøhetta’s design conceives the museum as a fine cut in the landscape, inviting visitors into a curious world of prehistory. It was here, deep in the caves below, that prehistoric artists produced extraordinary cave paintings over 20,000 years ago.

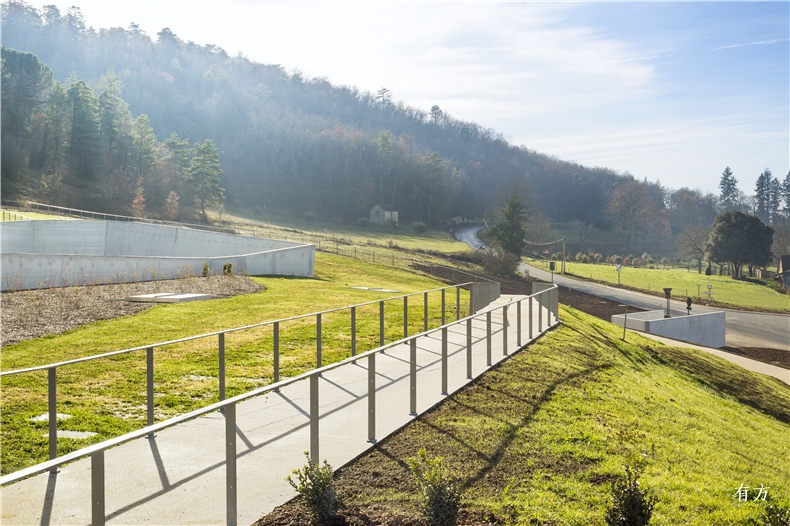

场地 森林和农田
基地

复制的岩画

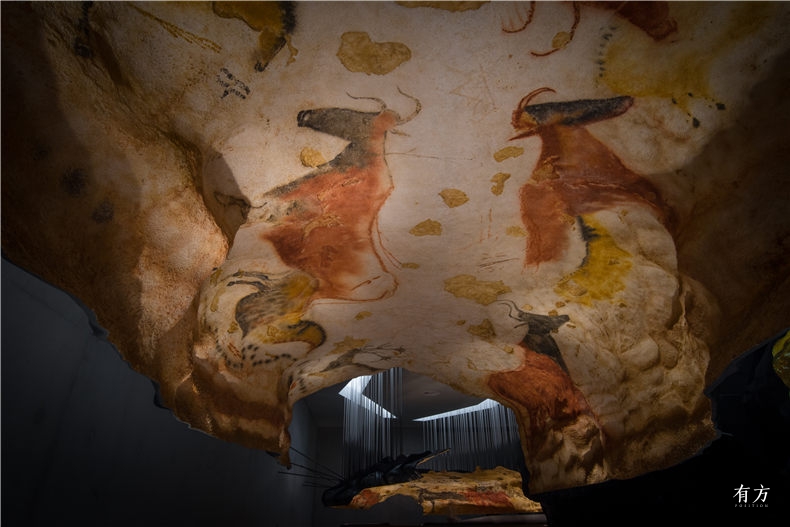

馆内 绘画特写

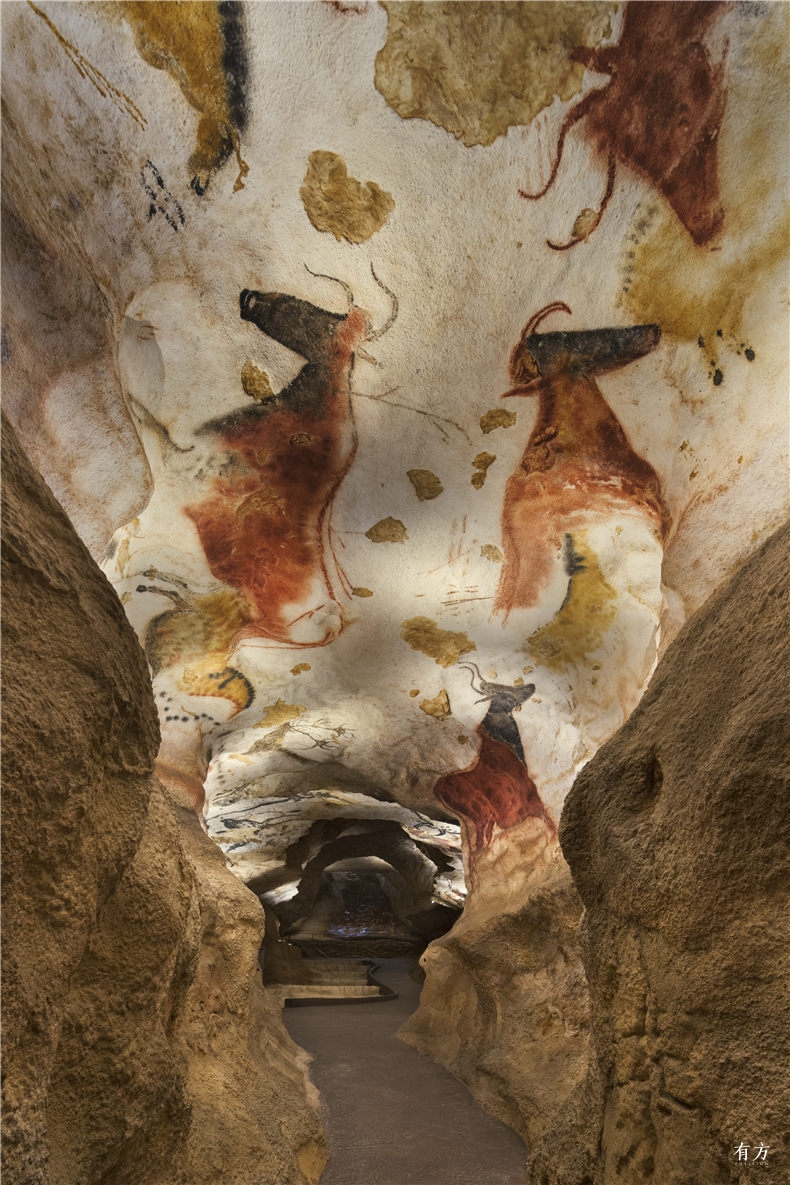

岩画2
复制岩画

作为一个博物馆和解说中心,项目重点是在空间内重建洞穴的环境,让访客能够体验神秘的气氛,触摸石头的轮廓和纹理,在此环境中感受古代艺术。壁画博物馆的建造标志着拉斯科洞窟文化展示的一个新阶段,通过对景观、建筑、室内和场景的整体考虑,建筑师旨在向访客揭示场地的重要性,同时展示这一原始奇观的神秘与美。

As a museum and interpretation centre, the project has opened up the possibility of visiting Lascaux, the most spectacular of all painted caves, to a new generation of visitors. The highlight is the facsimile cave that allows visitors to experience this mysterious environment, to touch the contours and textures of the stone and contemplate the ancient artworks. Lascaux IV marks the beginning of a new phase in the celebration of the knowledge of this unique site and its cultural heritage. Through a holistic approach that considers the landscape, the architecture, the interior, and the scenography as a whole, the design aims to create an experience that educates visitors on the significance of the site while revealing the original wonder and mystery of its discovery.

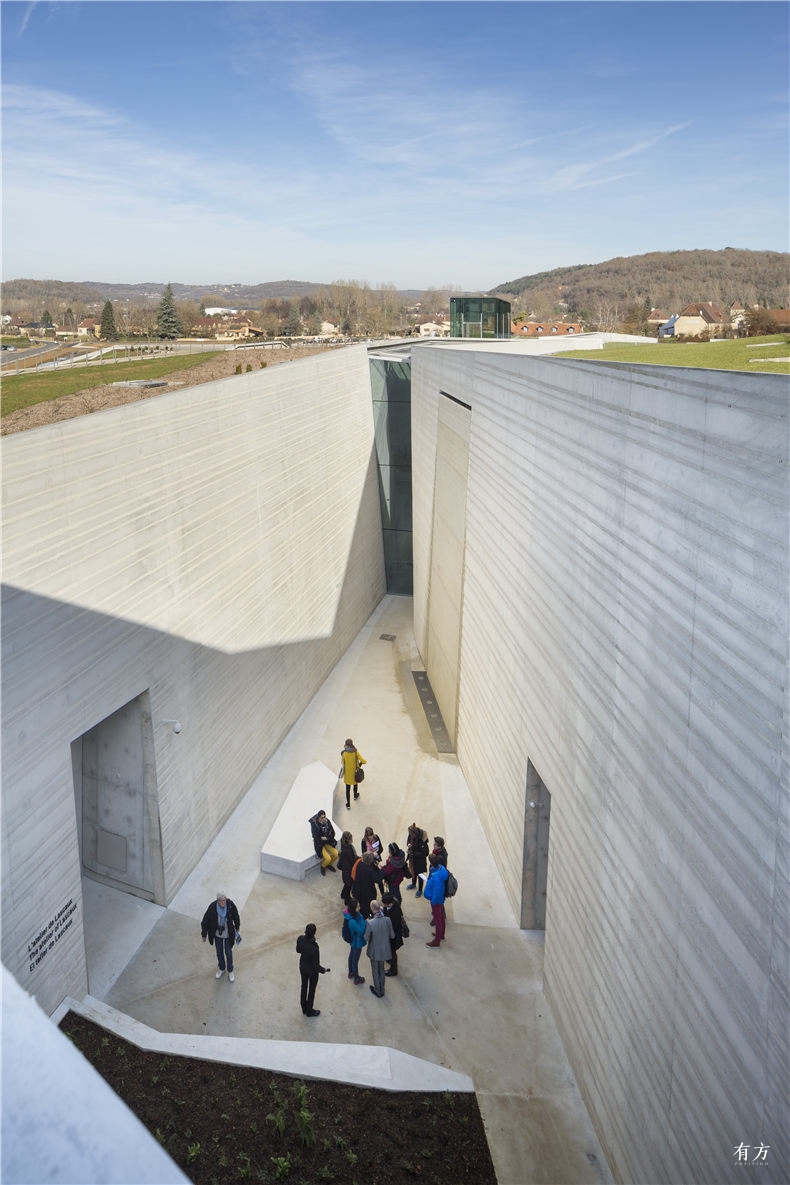

入口
博物馆入口

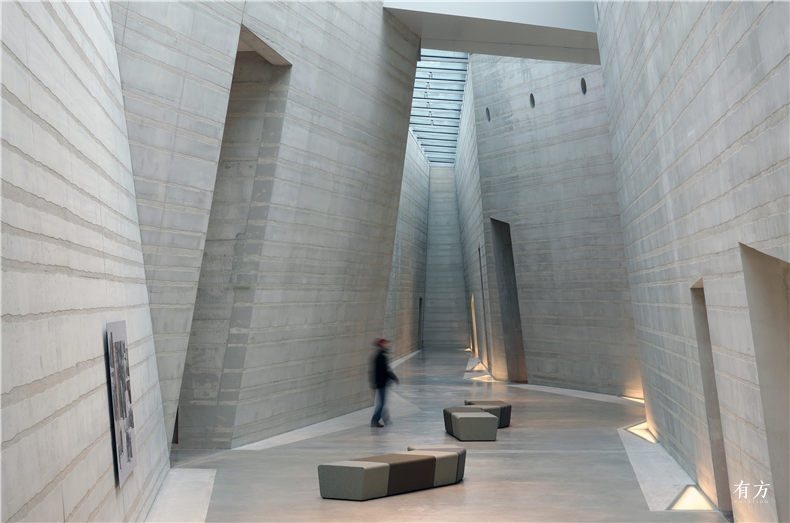

博物馆室内
博物馆室内

4号壁画博物馆是风景中的一道裂隙。屋顶设有一条柔和的断线,反映了山坡起伏的形状。它的虚实变化与其外部状态紧密相连,同时暗示着博物馆内部的内容。博物馆坐落于未开发的森林和农田之间的过渡地带,它所占用的边界不属于两者中的任何一个,这一独立性让博物馆得以为其基地做出特有的贡献、促进两处截然不同的地景之间的交流。建筑物的形式和物质性清晰地表述出来,回应着周边自然中的种种元素。通过这种方式,这座建造希望反映出原始洞穴的神秘精神,以及此处场地气质。

Lascaux IV is created as a fissure in the landscape. The roof features a gentle broken line, echoing the hill’s undulating form. Across its length, the façade ranges from transparent to opaque, maintaining an inseparable relationship with the exterior, offering hints of what is contained within. Lascaux IV is placed in a transitional zone between untouched forest and agricultural land. By using the exact border that does not belong to either of these two vastly different landscapes, the architecture aims to be a contribution to the location and landscape, facilitating a dialogue between the two contrasting landscapes. The building’s form and materiality have been given a sober expression, within any excess, speaking to the elements of the surrounding nature. In this way, the building aims to reflect the curious spirit of the original caves and context, as well as to stand as a grand representation of the future heritage of the area.

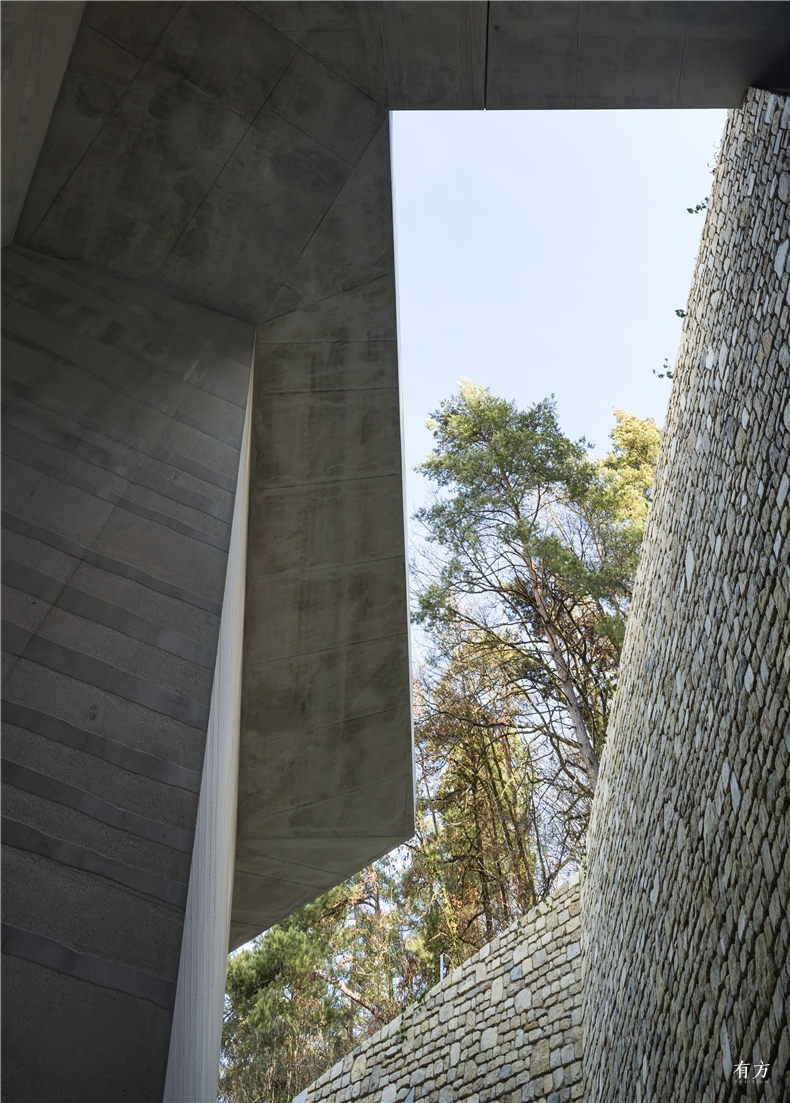

抬头看有树
馆区与周边自然

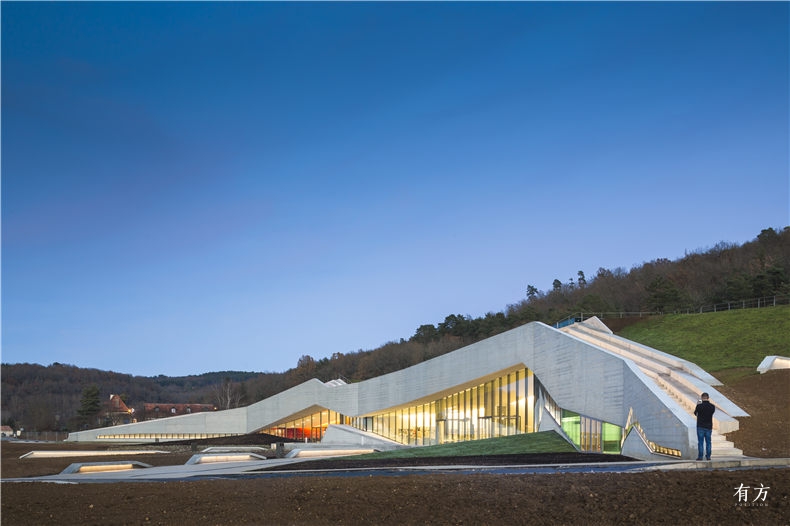

融合两处景观边界的建筑全景好全景好
坐落于过渡界线

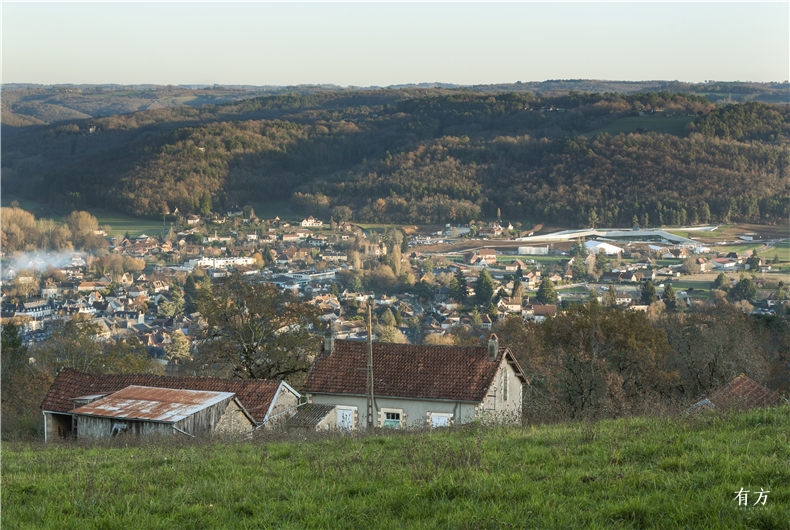

博物馆远景匍匐于地景之上
博物馆远景,匍匐于地景之上

墙壁,屋顶,外墙,以及内外部地板都采用混凝土制造,赋予建筑以整体性。原始的未经处理的材料唤起了访客对矿物世界、山间岩石和洞穴的直接感受。此外,玻璃是建筑中第二重要的材料,它定义的透明立面在内外部之间形成直接的视觉连接,并邀请公众的参与。玻璃和混凝土之间的相互作用产生了一系列对比效果,关于虚实,光影,未完成与精密性,粗糙与光滑。它们之间的对话给予建筑一种现代感。

The walls, roof, façade strip, and both interior and exterior flooring are all made in the same architectural concrete, giving the building a monolithic expression. The raw, unfinished treatment of the material evokes the mineral world, the rock of the hills, and the cave. The project’s second predominant materiality, glass, defines the façade and the
roof of the orientation space. The transparency of the façade creates a direct visual connection between the exterior and the interior, inviting the public in. The interplay between the glass and the concrete produces a series of contrasting effects, between opaqueness and transparency, light and shade, incomplete and sophisticated, rough and smooth. Their reciprocity creates balance and gives the facility a contemporary feel.

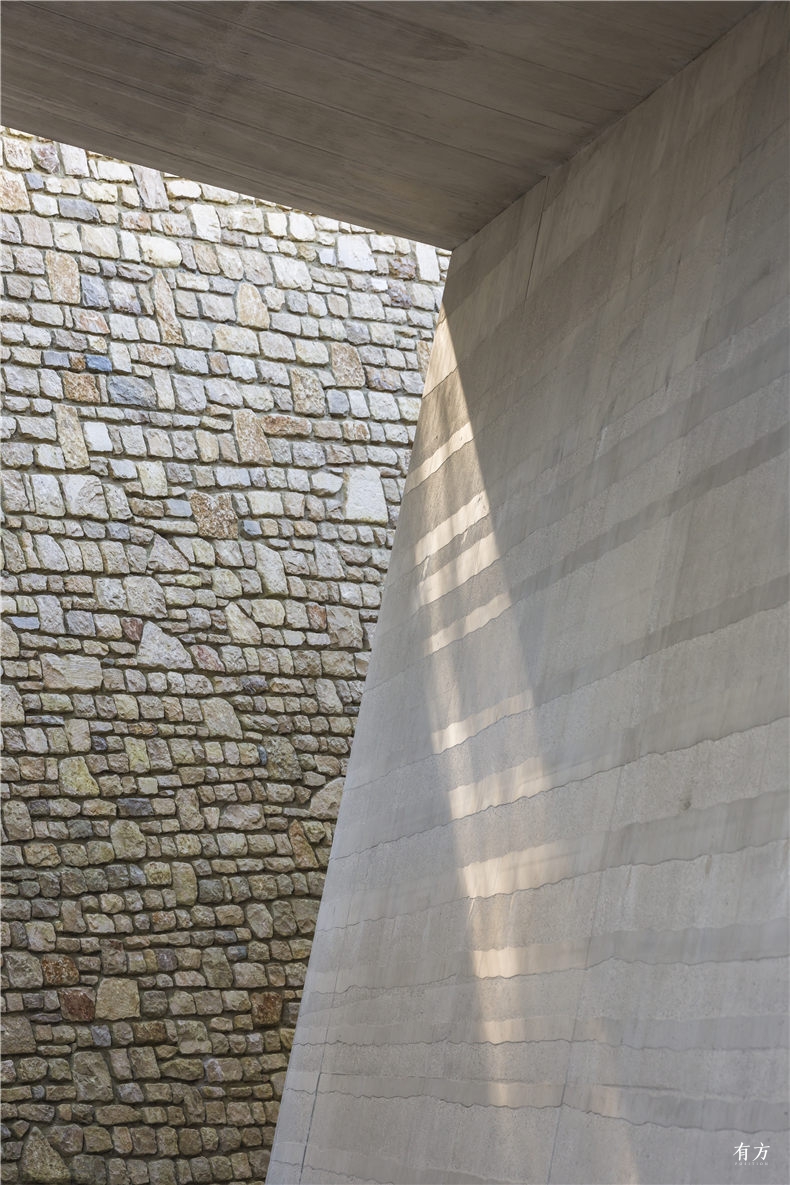

材质细部2012119 OS N294
材质细部

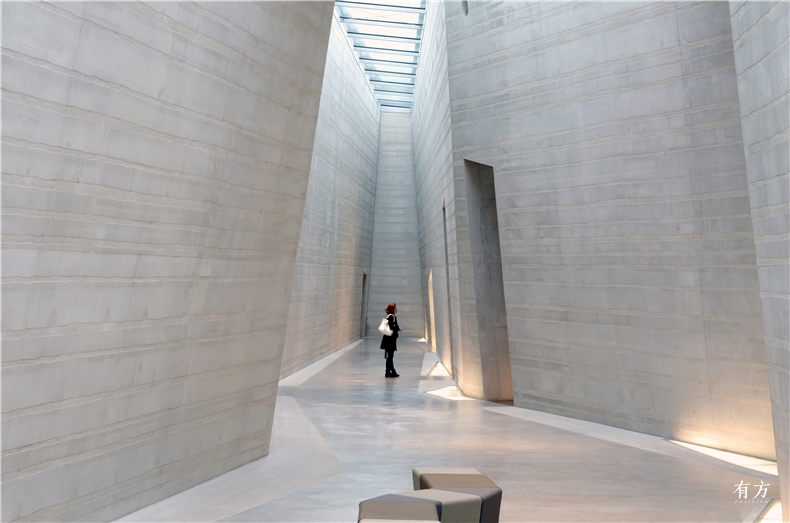

混凝土和玻璃2

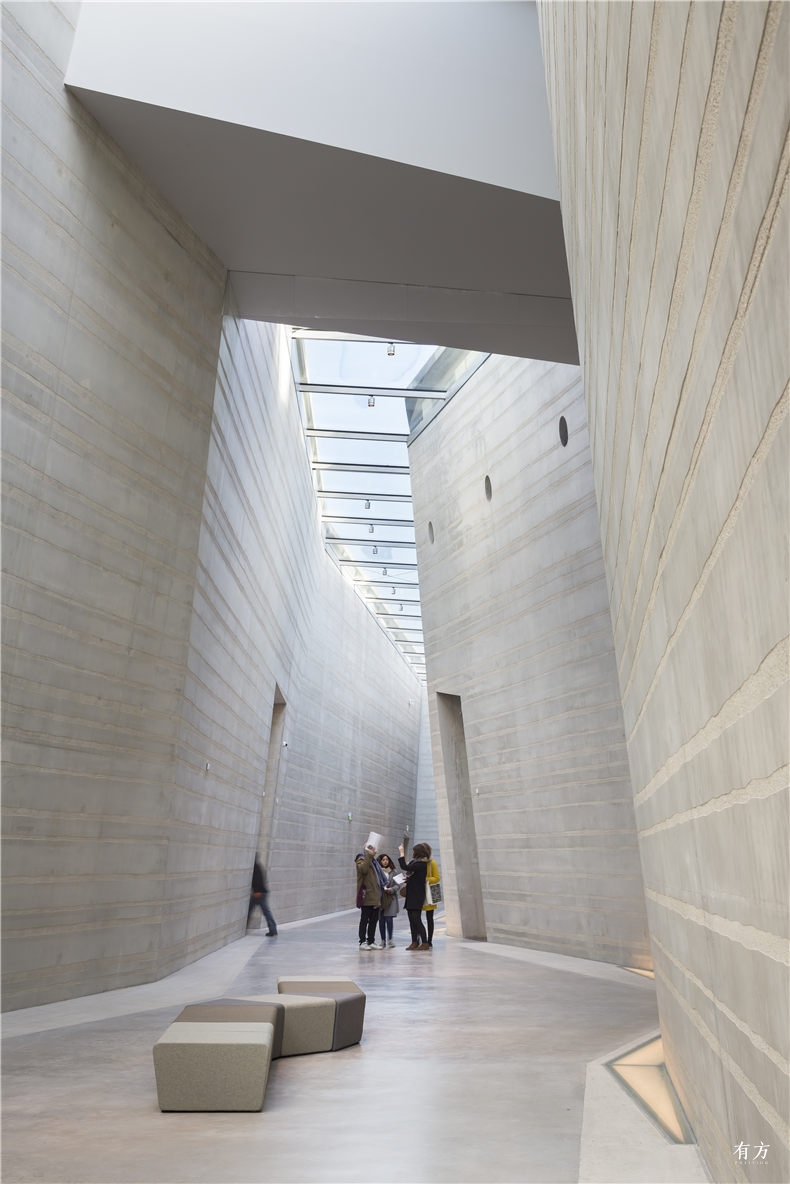

博物馆入口室内通道 两种材料
混凝土和玻璃

游客的体验路径经过精心的设计。从大堂开始,乘坐电梯到屋顶可欣赏Montignac 和 Vézère 山谷壮丽全景的眺望台。而后通过一个平缓斜坡向下,进入“岩洞”的入口。景观的变化和逐渐下降的曲折动线让游客感受到时空的变化,复刻着类似于1940年洞穴发现时的体验。

The visitor experience is carefully sequenced. Beginning in the lobby, visitors
ascend by a lift to the belvedere out on the roof, where they can enjoy a magnificent panoramic view of Montignac and the Vézère Valley. They then descend a gentle slope towards the cave facsimile, which follows the incline of the roof towards the edge of the forest until reaching the entrance to the replica. The winding path through the landscape and gradual descent back down to grade facilitates a mental transition through time and space, creating an experience similar to that of the cave’s first discoverers in 1940.

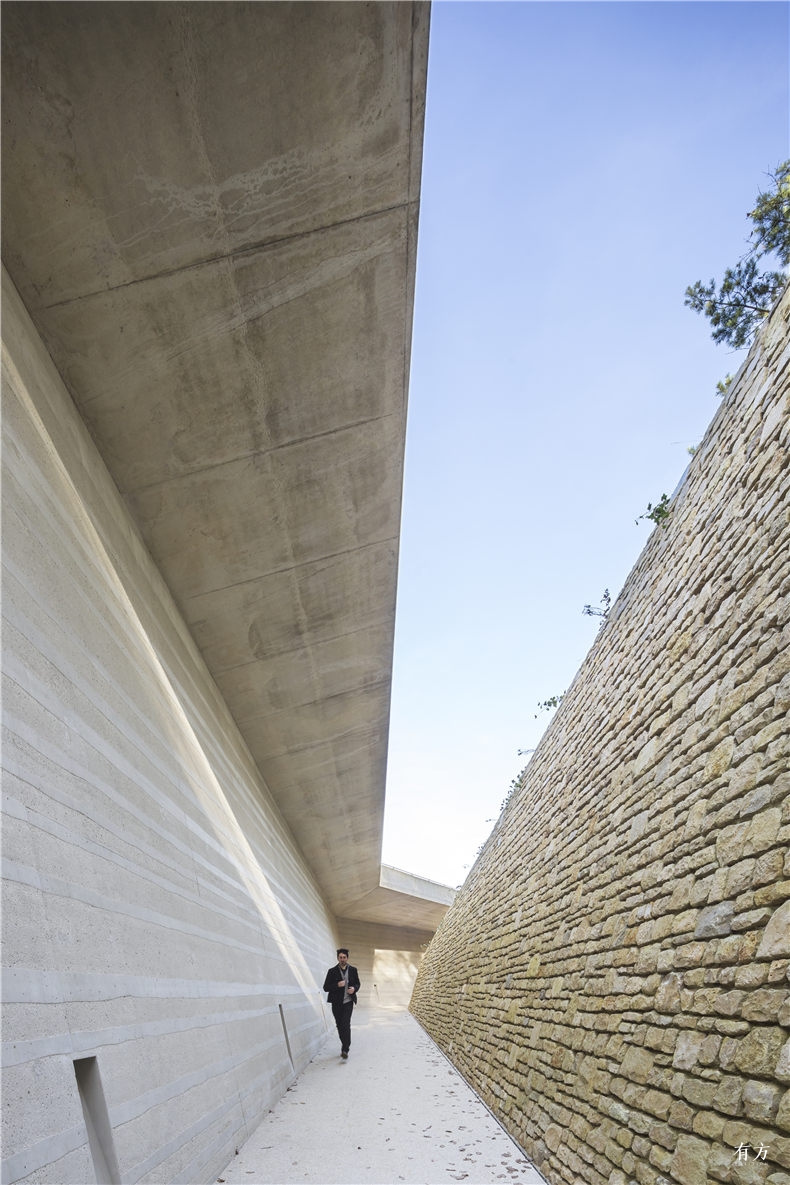

通道
通道

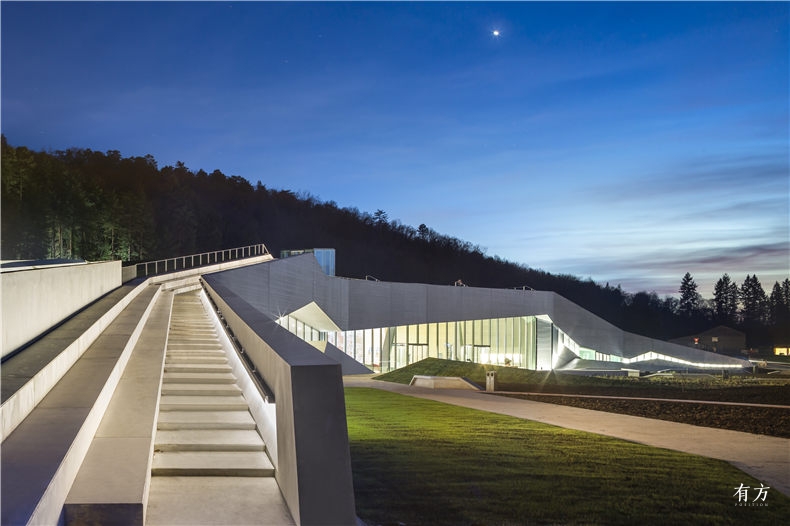

动线楼梯 屋顶
屋顶梯级

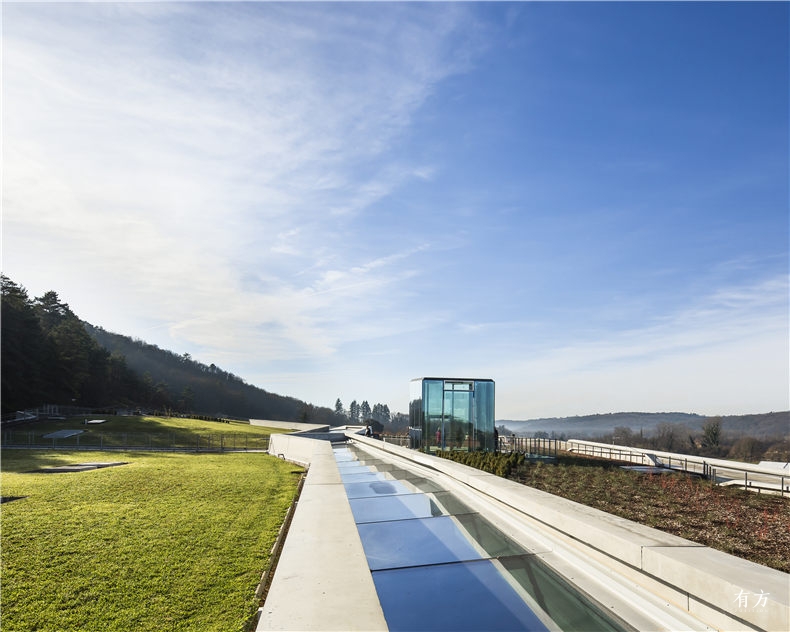

乘坐电梯来到博物馆屋顶再下降进入博物馆
乘坐电梯来到屋顶,再下行进入博物馆

建筑空间被两个主要的自然光源塑造着。一个是由横向切割创造,抬升并分离出两个平面,并由此形成垂直立面以供光线进入。另一个是沿着建筑轴线的纵向切割,它呈现了天窗的水平玻璃表面,使光线得以垂直进入。在一天的时间推移中,游客可以体验到自屋顶玻璃和墙面进入的种种光影变化。

The design of the building has been shaped by two principal sources of natural light. One is created by a lateral cut in the landscape that lifts and separate the two planes, pulling them apart to generate a vertical facade where the light enters the building horizontally. The other is a deep cut along the spine of the building, which reveals the horizontal glass surface of a skylight and allows light in vertically. Throughout the course of a day, visitors experience the various shades and intensities of light that are filtered through the roof glass and the façade.

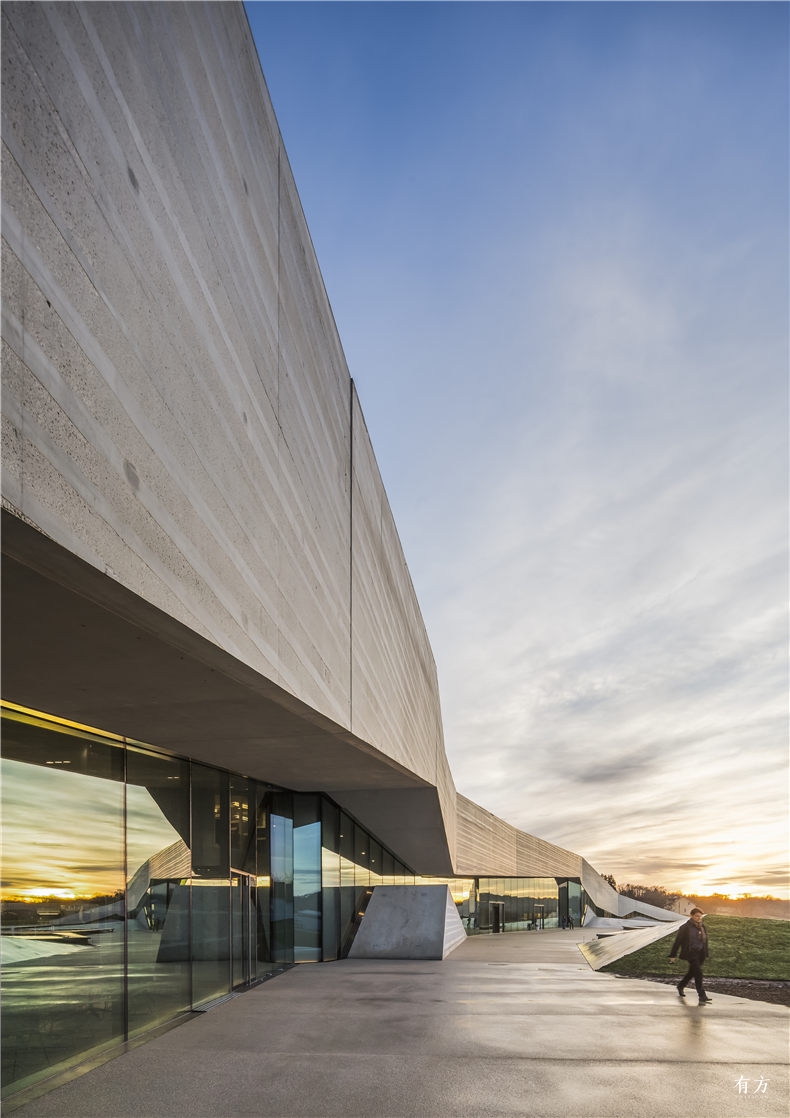

内外光线
内外光线
博物馆大堂光线
博物馆大堂光线

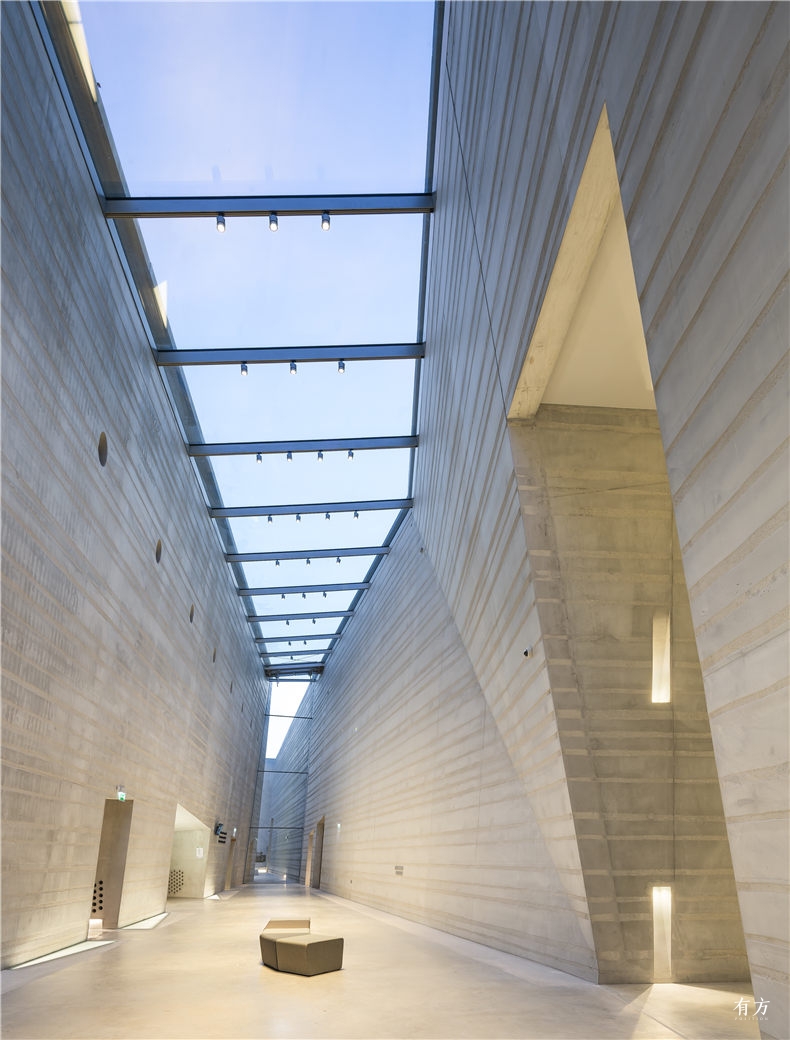

天光 室内好图
室内天光

当游客进入建筑,变化的光影条件微妙地突出了不同空间的功能和氛围。从洞穴复制品的黑暗,到花园内的开阔天空,再到导览区的阴影变化,照明系统的序列设计根据访客对不同光线的适应能力进行着细致调整。

As visitors make their way through the building, these changing light conditions subtly highlight the various functions and atmospheres of each space. From the darkness in the caves replicas, to the open sky in the garden, to the shadow-play in the orientation zone, visitors progress through a sequence of lighting conditions that is carefully attuned to how the eye responds to lightness and darkness.

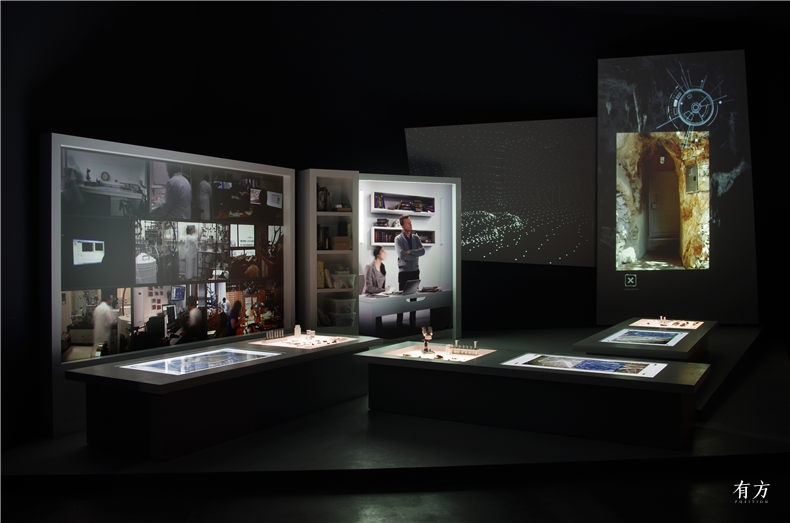

馆内氛围
馆内氛围

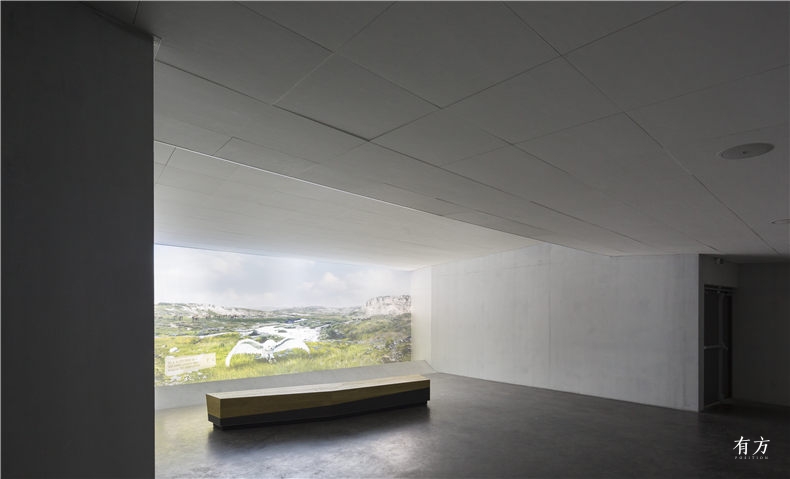

展示空间的光线
展示空间的光线

在夜晚,外部景观由自内渗出的温暖人造光源塑造着,形成的光影描绘着入口外墙和主轴线的形状。

At night, the exterior landscape is framed by the warm glow of the artificial lighting within, forming a discrete volume of light that describes the shape of the entrance façade and the shape of the spine.

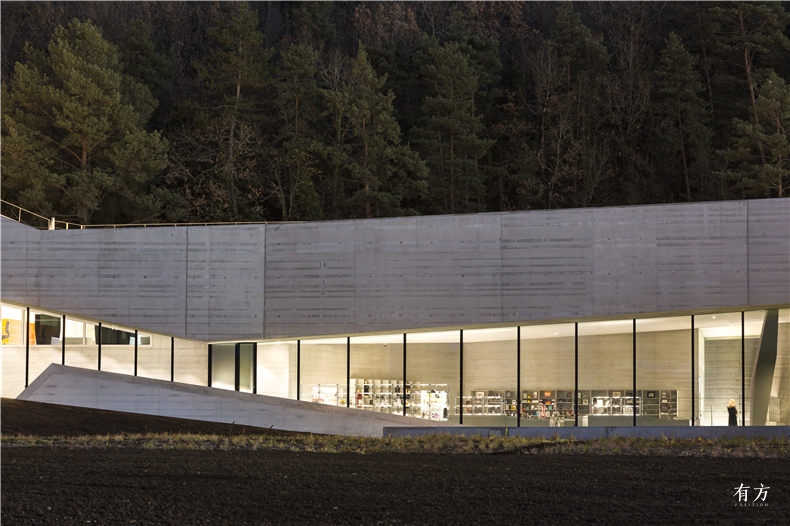

夜晚光景细部
夜间光景细部

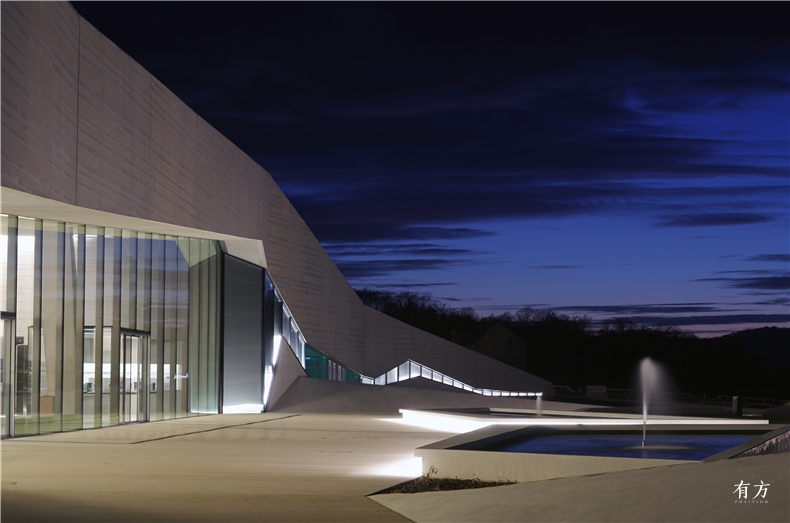

夜间光影
夜间光影

作为 Vézère 山谷中引人注目的现代艺术场馆,4号壁画博物馆以全新的体验方式展现着史前艺术作品,并提供了深入了解场地遗产的途径。现代的几何形制和物质性使访客意识到他们欣赏的是复制品,但却不会因此削弱展品的感染力。

As a striking, contemporary addition to the landscape of the Vézère Valley, Lascaux IV frames a new experience of some of the nest known examples of prehistoric art, and offers profound new ways of understanding the rich heritage of the site. The contemporary geometry and materiality also counters the potential trap of artifice: allowing the visitor to understand that they are in the presence of a reproduction, without distracting from the power of its impact.

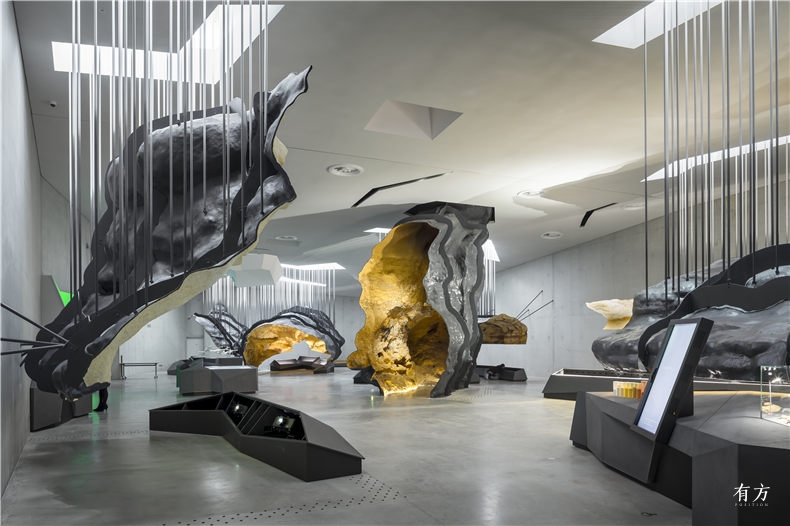

倒数第二段前 展馆内
现代的几何形制

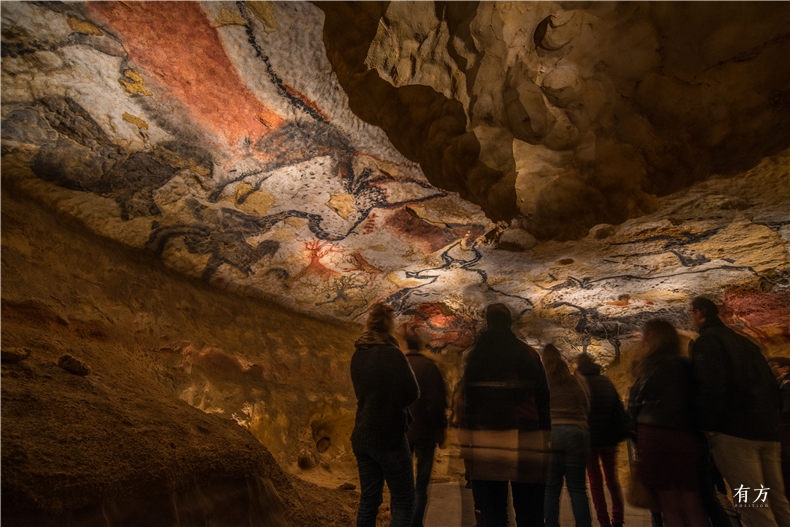

观众 展内部
全新展示方式

建筑塑造出一种戏剧性的展览体验,旨在将游客带入到一个洞穴综合体内,其中有着隧道,被自然光源片段地照亮的室内,以及由先进场景、媒介技术呈现出的绘画作品。

The exterior reflects the contours of the limestone geology and reveals a dramatic exhibition experience designed
 to transport the visitor into a cave complex complete with tunnels, chambers lit
 by shafts of broken sunlight, and paintings that are mediated by state of the art technology and scenographic techniques.

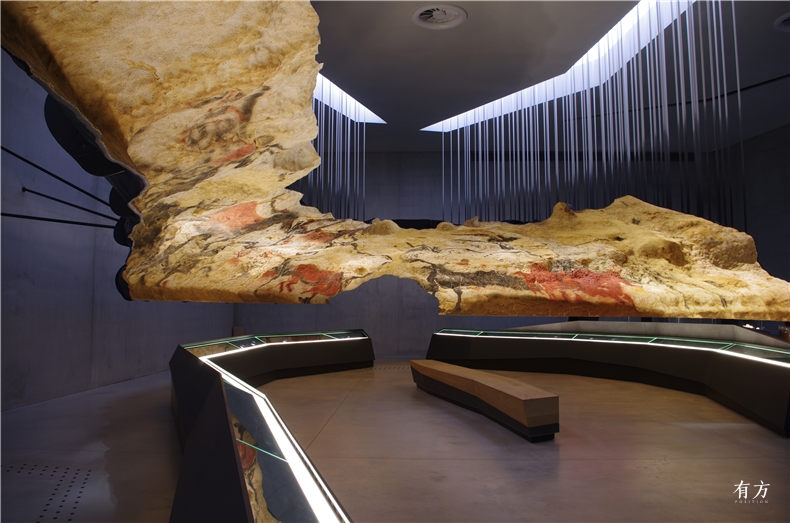

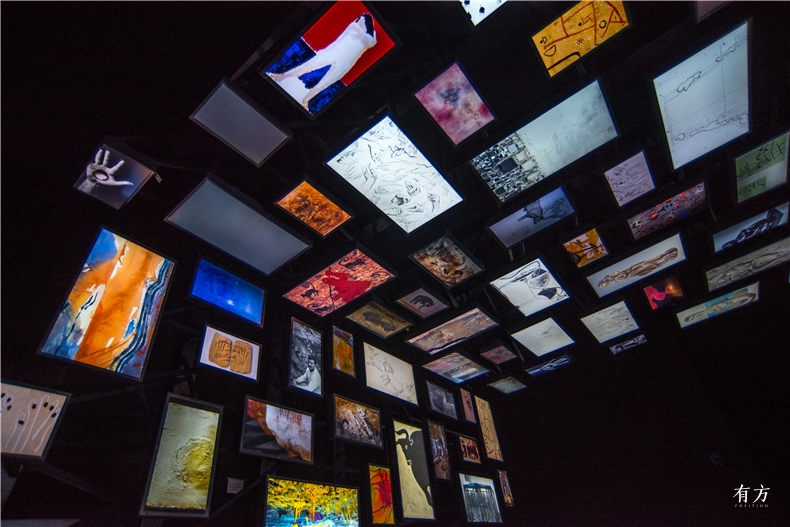

馆内 技术展品0.5

展馆内景 横好

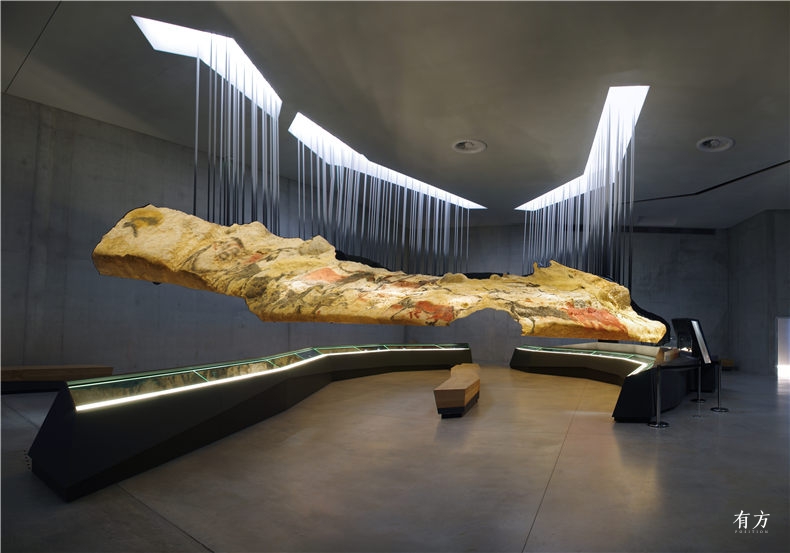

技术 展馆内景
展陈设计

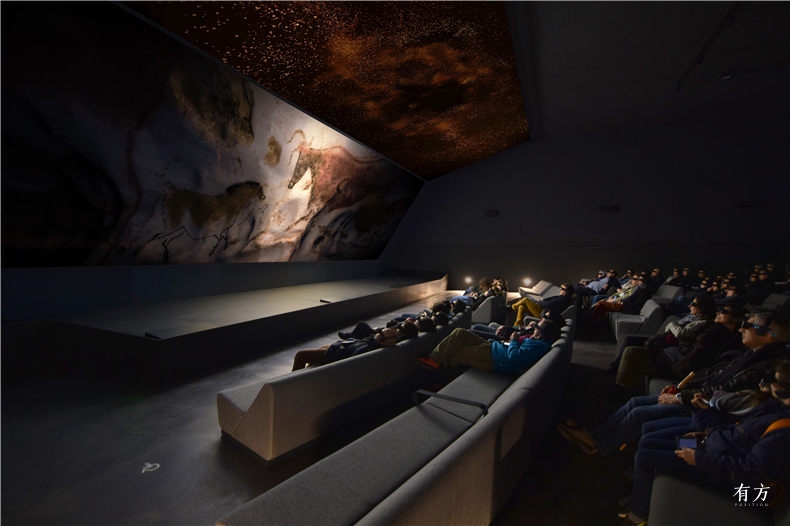

影院馆内技术3
馆内影院

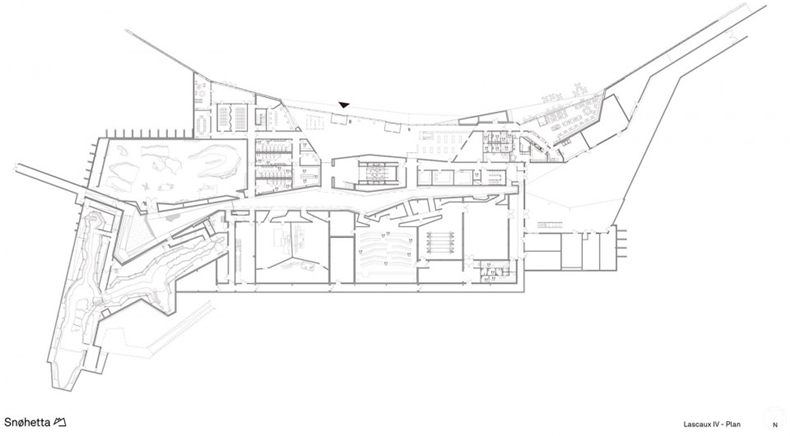

snota平面0
平面

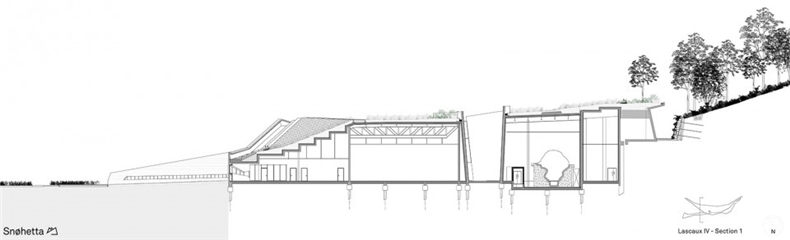

snota剖面92

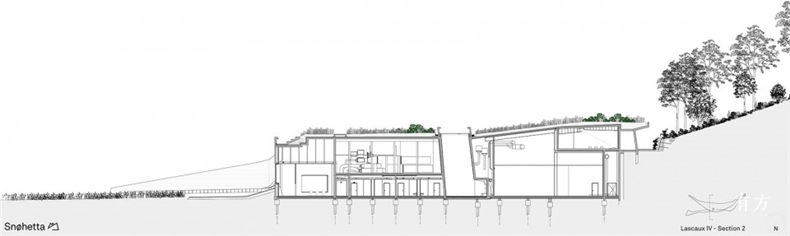

snota剖面27

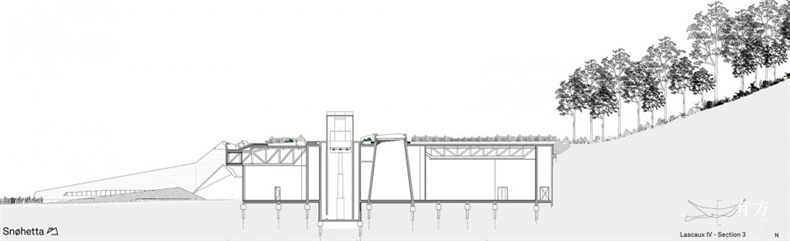

snota剖面393

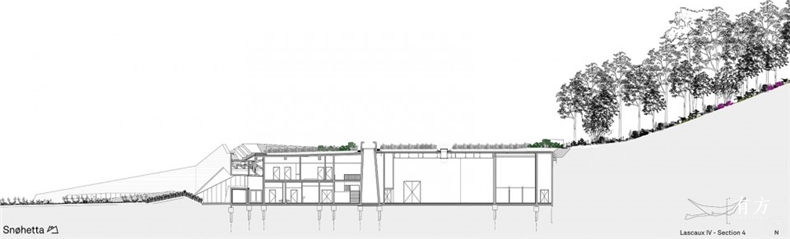

snota剖面4 960x291
剖面





Location: Montignac, France
Address: Avenue de Lascaux, 24290 Montignac, France
Client: Conseil Général de la Dordogne
Ground surface: 11400 m2
Total oor surface: 8365 m2
Total plot size: 53065 m2
Status: Completed
Project duration: 2012 – 2016
Opening date: December 15, 2016

Architect: Snøhetta
Landscape architect: Snøhetta
Interior architect: Snøhetta
Scenography: Casson Mann
Associate architect: SRA Architectes
Associate architect, study phase: Duncan Lewis Scape Architecture
